Let’s consider the following scenario.

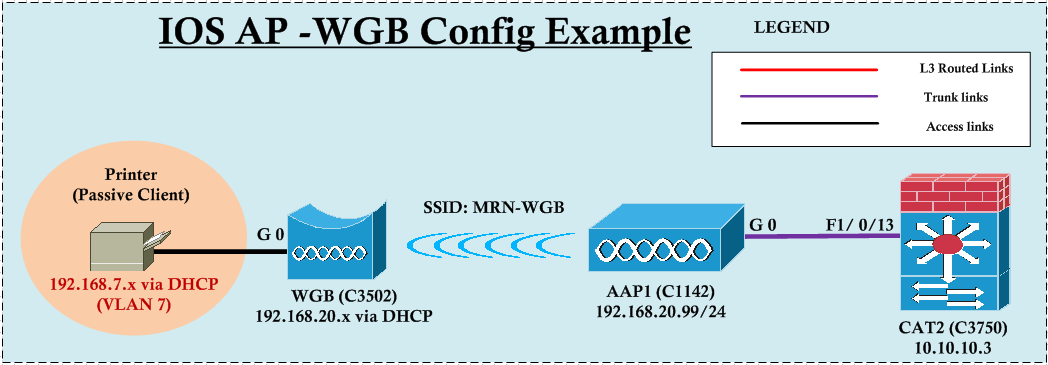

A WGB is connected to a root AP (AAP1) using EAP-FAST as security method. AAP1 is having 192.168.20.99 (Vlan20) management IP. A Printer (Passive Client) connected to WGB should get an IP from 192.168.7.0/24 (Vlan7) which is different to AAP management VLAN.
Here are few basic rules to remember when configuring WGB
1. WGB will associate to root AP using bridge-group 1 (native vlan)
2. If WGB to support multiple VLANs then it should be in “infrastructure” mode (in Unified Wirelss or WLC based WGB, this is not required)
3. If WGB itself require an IP (for mgmt purposes) it should be on native VLAN (of WGB)
Based on the above rules, Here are the two different valid options to fulfill this requirement.
Option 1:
Configure WGB to support multiple VLAN & assign all clients behind WGB to vlan 7. In this case WGB itself will take an IP from VLAN20 which is native vlan on WGB.
Option 2:
Make VLAN 7 as native on WGB while keeping AAP native VLAN to 20. In this way WGB & clients get IP from VLAN7 & no multiple VLAN support on WGB.
Since I have written a post on how to configure EAP-FAST, I will not describe the steps here simply use the configuration required, please read that post if you require more information.
Here how you could configure Option 1 as a solution for this.
In AAP1 “infrastructure-client” command under dot11 radio 0 interface make WGB “infrastructure” mode which is required to support multiple vlan on WGB.
hostname AAP1
!
aaa new-model
aaa group server radius RAD-GROUP
server 192.168.20.99 auth-port 1812 acct-port 1813
!
aaa authentication login EAP-METHODS group RAD-GROUP
!
radius-server local
nas 192.168.20.99 key Cisco123
user wgb password Cisco123
!
radius-server host 192.168.20.99 auth-port 1812 acct-port 1813 key Cisco123
!
dot11 ssid MRN-WGB
vlan 20
authentication open eap EAP-METHODS
authentication network-eap EAP-METHODS
authentication key-management wpa version 2
!
interface Dot11Radio0
encryption vlan 20 mode ciphers aes-ccm
ssid MRN-WGB
station-role root
infrastructure-client
!
interface Dot11Radio0.7
encapsulation dot1Q 7
bridge-group 7
!
interface Dot11Radio0.20
encapsulation dot1Q 20 native
bridge-group 1
!
interface GigabitEthernet0.7
encapsulation dot1Q 7
bridge-group 7
!
interface GigabitEthernet0.20
encapsulation dot1Q 20 native
bridge-group 1
!
interface BVI1
ip address 192.168.20.99 255.255.255.0
ip default-gateway 192.168.20.254
sntp server 10.10.205.20
Here is the WGB configuration looks like.”workgroup-bridge client-vlan 7” command will enforce client behind WGB to be on vlan 7. “ip address dhcp” under BVI1 interface will ensure WGB will get an IP from native vlan which is 20 to manage WGB itself. “bridge 7 address 0018.fea5.dc3e forward GigabitEthernet0.7” ensure if WGB client is “passive-client” (Printer in my case) with MAC address 0018.fea5.dc3e remain in WGB bridge table without aging-out.
hostname WGB ! dot11 ssid MRN-WGB vlan 20 authentication open eap EAP-METHODS authentication network-eap EAP-METHODS authentication key-management wpa version 2 dot1x credentials FAST dot1x eap profile FAST ! eap profile FAST method fast ! dot1x credentials FAST username wgb password Cisco1123 ! interface Dot11Radio0 encryption vlan 20 mode ciphers aes-ccm ssid MRN-WGB station-role workgroup-bridge ! interface Dot11Radio0.7 encapsulation dot1Q 7 bridge-group 7 ! interface Dot11Radio0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface GigabitEthernet0.7 encapsulation dot1Q 7 bridge-group 7 ! interface GigabitEthernet0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface BVI1 ip address dhcp sntp server 10.10.205.20 ! bridge 7 address 0018.fea5.dc3e forward GigabitEthernet0.7 workgroup-bridge client-vlan 7
If you do this you can see your printer will get an IP in the range of 192.168.7.x/24 where as WGB itself will get an IP 192.168.20.x/24 range. I have configured DHCP on CAT2 for these two VLAN. Here is the CAT2 config for this example.
interface FastEthernet1/0/13 description TEMP-AAP1-1142 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk ! ip dhcp excluded-address 192.168.20.1 192.168.20.99 ip dhcp excluded-address 192.168.7.1 192.168.7.99 ! ip dhcp pool VLAN7 network 192.168.7.0 255.255.255.0 default-router 192.168.7.1 domain-name mrn.com dns-server 192.168.200.1 ! ip dhcp pool vlan20 network 192.168.20.0 255.255.255.0 default-router 192.168.20.254 dns-server 192.168.200.1 domain-name mrn.com
You can verify this “show dot11 association” output on AAP1 & then ping these IP from CAT2
AAP1#sh dot11 ass 802.11 Client Stations on Dot11Radio0: SSID [MRN-WGB] : MAC Address IP address Device Name Parent State 0018.fea5.dc3e 192.168.7.109 WGB-client - 44d3.caaf.4343 Assoc 44d3.caaf.4343 192.168.20.143 WGB WGB self EAP-Assoc CAT2#ping 192.168.7.109 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.7.109, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/4/9 ms CAT2#ping 192.168.20.143 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.20.143, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/4/9 ms
Now let’s see how to configure this in Option 2 to achieve the same outcome. In this case we will make Vlan7 on WGB as native vlan. In this way WGB clients (including WGB itself) get vlan 7 IPs. Since AAP1 has to be on vlan 20, native vlan should be 20 for the AAP1.
Here is the AAP1 configuration.
hostname AAP1 ! aaa new-model ! aaa group server radius RAD-GROUP server 192.168.20.99 auth-port 1812 acct-port 1813 ! aaa authentication login EAP-METHODS group RAD-GROUP ! radius-server local nas 192.168.20.99 key Cisco123 user wgb password Cisco123 ! radius-server host 192.168.20.99 auth-port 1812 acct-port 1813 key Cisco123 ! dot11 ssid MRN-WGB vlan 7 authentication open eap EAP-METHODS authentication network-eap EAP-METHODS authentication key-management wpa version 2 ! interface Dot11Radio0 encryption vlan 7 mode ciphers aes-ccm ssid MRN-WGB station-role root ! interface Dot11Radio0.7 encapsulation dot1Q 7 bridge-group 7 ! interface Dot11Radio0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface GigabitEthernet0.7 encapsulation dot1Q 7 bridge-group 7 ! interface GigabitEthernet0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface BVI1 ip address 192.168.20.99 255.255.255.0 ! ip default-gateway 192.168.20.254 sntp server 10.10.205.20
Here is the WGB configuration.
hostname WGB ! dot11 ssid MRN-WGB vlan 7 authentication open eap EAP-METHODS authentication network-eap EAP-METHODS authentication key-management wpa version 2 dot1x credentials FAST dot1x eap profile FAST ! eap profile FAST method fast ! dot1x credentials FAST username wgb password Cisco123 ! interface Dot11Radio0 encryption vlan 7 mode ciphers aes-ccm ssid MRN-WGB station-role workgroup-bridge ! interface Dot11Radio0.7 encapsulation dot1Q 7 native bridge-group 1 ! interface GigabitEthernet0.7 encapsulation dot1Q 7 native bridge-group 1 ! interface BVI1 ip address dhcp ! bridge 1 address 0018.fea5.dc3e forward GigabitEthernet0.7 ! sntp server 10.10.205.20
You can verify the Printer & WGB IP details & connectivity to rest of the network as follows.
AAP1#show dot11 associations 802.11 Client Stations on Dot11Radio0: SSID [MRN-WGB] : MAC Address IP address Device Name Parent State 0018.fea5.dc3e 192.168.7.109 WGB-client - 44d3.caaf.4343 Assoc 44d3.caaf.4343 192.168.7.112 WGB WGB self EAP-Assoc CAT2#ping 192.168.7.109 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.7.109, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/4/9 ms CAT2#ping 192.168.7.112 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 192.168.7.112, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 1/2/9 ms
.
