There are two types of ACL available in WLC. CPU ACL & Interface ACL

Here are the basic rules for ACL on a WLC.

1. Direction : There are 3 directions. Inbound, Outbound and Any.These directions are taken from a position relative to the WLC & not the wireless client. CPU ACL needs to apply either inbound or any direction.

– Inbound: IP packets sourced from the wireless client are inspected to see if they match ACL lines
– Outbound:IP packets destined to the wireless client are inspected to see if they match ACL lines
– Any: IP packets sourced from the wireless client and destined to the wireless client are inspected to see if they match ACL lines. Any direction should only be used in specific situations where you want to block or allow a specific IP protocol or port in both directions.

2. Source/Destination with Mask  : Mask in a WLC ACL is not like the wildcard or inverse mask uses in IOS ACL. In WLC ACL 255 means match exactly the octet, while 0 is a wildcard. (in otherwords mask bit 1 mean “exact match”, mask bit 0 for “ignore”

3. Protocol : Options are Any, TCP (6), UDP(17), ICMP (1), ESP (50). AH (51), GRE (47), IP-in-IP (4), EoIP(97), OSPF(89), Other (specify the protocol number).

4. Source/Destination Port : Can only be specified for TCP or UDP protocol. Range 0-65535.

5. DSCP : Allows you to specify DSCP values to match in the IP packet header.

6. Action : Deny or Permit. Remember that implicit deny any any rule exist here as well.

Keep in mind following restrictions in WLC ACL

1. You can define up to 64 ACL each with up to 64 rules.
2. You cannot log packets that matches ACL line (not like an IOS ACL)
3. IP packets (Ethertype[0x0800]) are the only packet inspected by the ACL. Any other type of packets cannot be blocked. eg ARP – 0x0806
4. ACL do not affect broadcast or Multicast traffic
5. ACLs cannot block access to WLC virtual IP address. Therefore DHCP cannot be blocked for wireless clients.
6.

You can configure ACL by choosing “Security -> Access Control Lists -> Access Control Lists”. Lets consider an example. Wireless client will be in 10.10.14.0/24 network & wired clients are in 192.168.1.0/24 network. CME IP is 10.10.205.20. Users in wireless subnet should not able to ping CME IP, but they should be able to ping any other network.

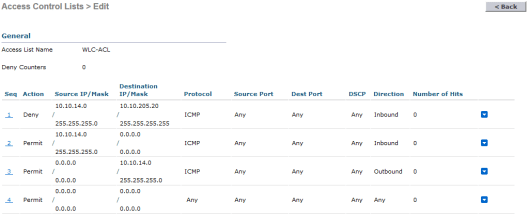

Below screenshots show how to define this. Tick “Enable Counters” to show the statistics

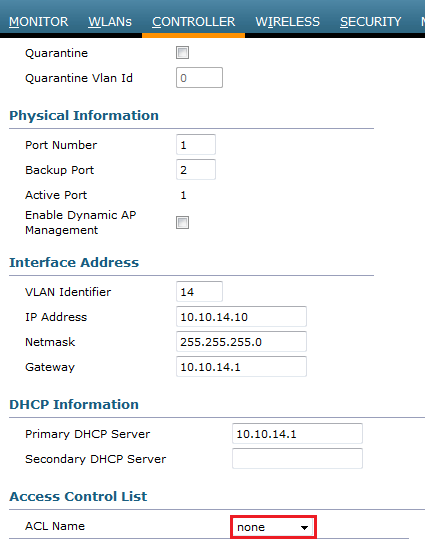

You can apply this per interface or per WLAN. Per WLAN ACL will override the interface ACL.

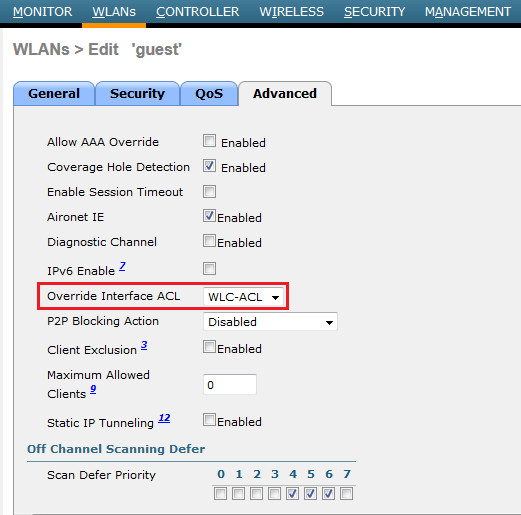

Here is the WLAN advanced option.

Here is the before applying ACL.

CME#sh ip int bri | ex un|dis
Interface                  IP-Address      OK? Method Status                Protocol
FastEthernet0/0            172.16.99.5     YES NVRAM  up                    up
FastEthernet0/1            192.168.1.254   YES NVRAM  up                    up
FastEthernet2/1            172.16.99.9     YES NVRAM  up                    down
Loopback0                  10.10.205.20    YES NVRAM  up                    up
Loopback99                 10.10.99.1      YES NVRAM  up                    up
CME#ping 10.10.14.53 sou lo0

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.14.53, timeout is 2 seconds:
Packet sent with a source address of 10.10.205.20
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/23/104 ms

I have applied this on WLAN itself. Here is after applying ACL onto WLAN. Since we block ICMP to loopback 0 IP you can ping this from another IP. Also keep in mind, in our test ICMP echo response packet will be get dropped when it comes from wireless client to AP (as we have applied deny inbound).

CME#ping 10.10.14.53 sou lo0

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.14.53, timeout is 2 seconds:
Packet sent with a source address of 10.10.205.20
.....
Success rate is 0 percent (0/5)
!
CME#ping 10.10.14.53 sou lo99

Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.14.53, timeout is 2 seconds:
Packet sent with a source address of 10.10.99.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 1/19/84 ms

You can verify this using WLC CLI as well.

(WLC1) >show acl summary
ACL Counter Status               Enabled
----------------------------------------
ACL Name                         Applied
-------------------------------- -------
WLC-ACL                          Yes
!
(WLC1) >show acl detailed WLC-ACL
                       Source                        Destination                Source Port  Dest Port
Index  Dir       IP Address/Netmask              IP Address/Netmask        Prot    Range       Range    DSCP  Action      Counter
------ --- ------------------------------- ------------------------------- ---- ----------- ----------- ----- ------- -----------
     1  In      10.10.14.0/255.255.255.0      10.10.205.20/255.255.255.255    1     0-65535     0-65535  Any   Deny           5
     2  In      10.10.14.0/255.255.255.0           0.0.0.0/0.0.0.0            1     0-65535     0-65535  Any Permit          14
     3 Out         0.0.0.0/0.0.0.0              10.10.14.0/255.255.255.0      1     0-65535     0-65535  Any Permit          14
     4 Any         0.0.0.0/0.0.0.0                 0.0.0.0/0.0.0.0          Any     0-65535     0-65535  Any Permit          77

If you are interested in CLI commands here are those. I think it is relatively easy to do this via GUI rather remember all these syntax for CLI.

config acl create WLC-ACL  <- Create an ACL
config acl counter start <- Enable Counters
config acl rule add WLC-ACL 1
config acl rule destination address WLC-ACL 1 10.10.205.20 255.255.255.255
config acl rule protocol WLC-ACL 1 1
config acl rule direction WLC-ACL 1 in
config acl rule source address WLC-ACL 1 10.10.14.0 255.255.255.0
config acl rule add WLC-ACL 2
config acl rule protocol WLC-ACL 2 1
config acl rule action WLC-ACL 2 permit
config acl rule direction WLC-ACL 2 in
config acl rule source address WLC-ACL 2 10.10.14.0 255.255.255.0
config acl rule add WLC-ACL 3
config acl rule destination address WLC-ACL 3 10.10.14.0 255.255.255.0
config acl rule protocol WLC-ACL 3 1
config acl rule action WLC-ACL 3 permit
config acl rule direction WLC-ACL 3 out
config acl rule add WLC-ACL 4
config acl rule action WLC-ACL 4 permit
config acl rule add WLC-ACL 65 <- I think this is implicit rule as line65
config acl apply WLC-ACL  <- Apply ACL to Data path ??
config wlan acl 4 WLC-ACL <- Apply ACL onto WLAN

If this is a CPU ACL you can apply it by using ” Security -> Access Control List -> CPU ACL” . I simply show the previous ACL (but it does not make any sense as CPU ACL looking at source/dest). You have to decide which traffic you want to block/ permit for WLC CPU. Remember that when CPU ACL is enabled via GUI it apply for both wireless & wired traffic. If you want to conditionally apply this rule you can use CLI “config acl cpu <acl-name> {wired|wireless|both}”

You can use “show rules”command to verify exising rules on a WLC. You can override these by CPU ACL if you use the same protocol/port numbers. This is shown partial list of the output of that command.

--------------------------------------------------------
Rule ID.............: 37
Ref count...........: 0
Precedence..........: 5010
Flags...............: 00000002 ( REJECT )
Service Info
        Service name........: SSH
        Protocol............: 6
        Source port low.....: 0
        Source port high....: 0
        Dest port low.......: 22
        Dest port high......: 22
Source IP range:
        IP Low.............: 0.0.0.0
        IP High............: 0.0.0.0
        Interface..........: ANY
Destination IP range:
        IP Low.............: 192.0.2.1
        IP High............: 192.0.2.1
        Interface..........: ANY
--------------------------------------------------------
Rule ID.............: 38
Ref count...........: 0
Precedence..........: 5010
Flags...............: 00000002 ( REJECT )
Service Info
        Service name........: TELNET
        Protocol............: 6
        Source port low.....: 0
        Source port high....: 0
        Dest port low.......: 23
        Dest port high......: 23
Source IP range:
        IP Low.............: 0.0.0.0
        IP High............: 0.0.0.0
        Interface..........: ANY
Destination IP range:
        IP Low.............: 192.0.2.1
        IP High............: 192.0.2.1
        Interface..........: ANY

In CLI, you can use “show acl cpu” to view ACL applied to CPU. Also you can use “config acl cpu none” to remove any CPU ACL.

ACL can be defined for pre-web authentication & will see that in a separate post for “Web Authentication”

Here are some reference documents, Even though those are bit old give your some valuable information which is relevant to this topic.

Securing Wireless LAN Controllers
