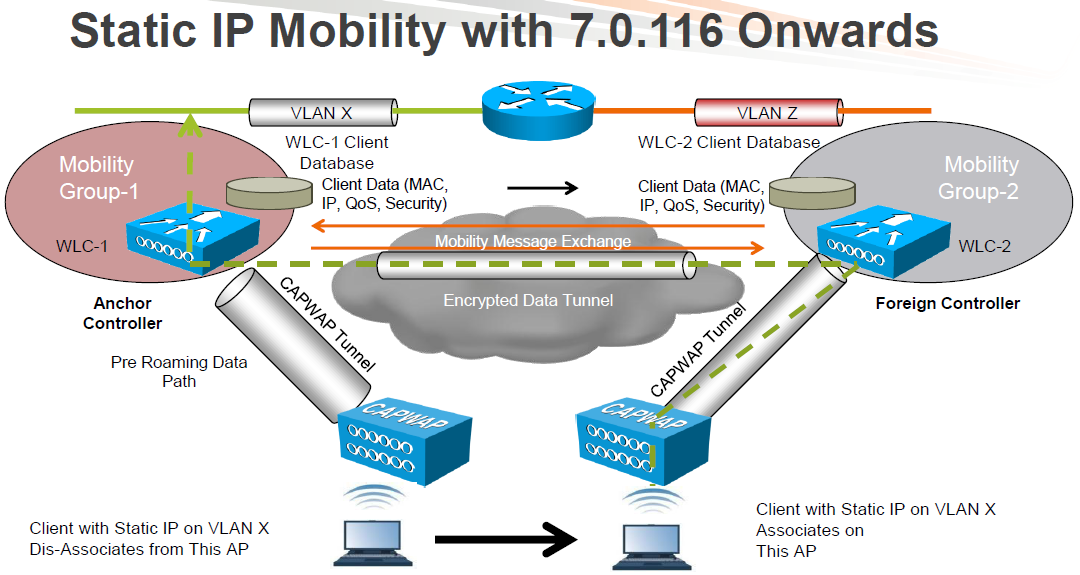

At times you may want to configure static IP addresses for wireless clients. When these wireless clients move about in a network, they could try associating with other controllers. If the clients try to associate with a controller that does not support the same subnet as static IP, the clients fail to connect to the network. With WLC 7.0.116.0 you can enable dynamic tunneling of clients with static IP addresses.

Static Mobility-02

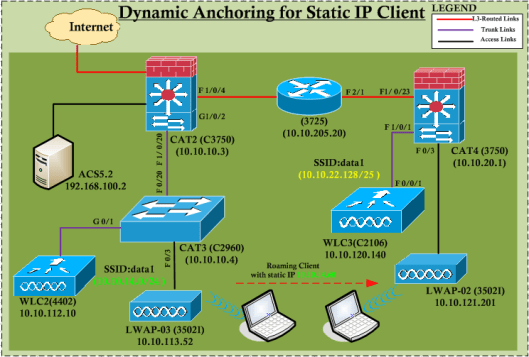

Here is the my topology to test this out. Static client is roaming towards LWAP2 where it associated WLC3 which does not have a dynamic interface on the same subnet as static of the client. Under normal circumstance this roam would fail.

Static Mobility-01

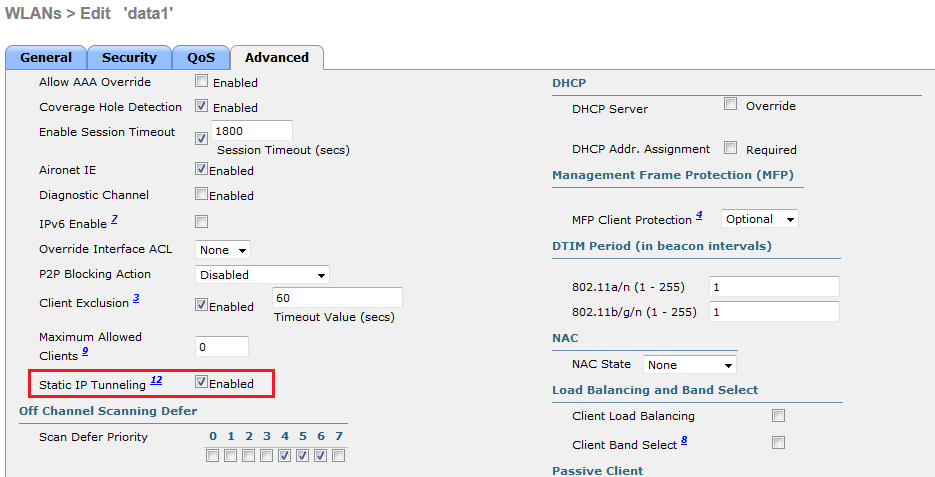

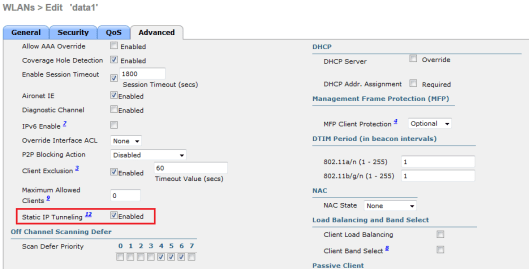

You can configure the “Static IP Tunneling” feature under Advanced Settings of the WLAN as shown in the below.

Static Mobility-03

You can configure the same with CLI command ” config wlan static-ip-tunneling {enable|disable} <wlan_id> “. Show wlan command can be used to verify this feature is enabled or disabled.

(WLC3) >show wlan 5
WLAN Identifier.................................. 5
Profile Name..................................... data1
Network Name (SSID).............................. data1
Status........................................... Enabled
MAC Filtering.................................... Disabled
Broadcast SSID................................... Enabled
AAA Policy Override.............................. Disabled
Network Admission Control
  Radius-NAC State............................... Disabled
  SNMP-NAC State................................. Disabled
  Quarantine VLAN................................ 0
Maximum number of Associated Clients............. 0
Number of Active Clients......................... 1
Exclusionlist Timeout............................ 60 seconds
Session Timeout.................................. 1800 seconds
CHD per WLAN..................................... Enabled
Webauth DHCP exclusion........................... Disabled
Interface........................................ data1
Multicast Interface.............................. Not Configured
WLAN ACL......................................... unconfigured
DHCP Server...................................... Default
DHCP Address Assignment Required................. Disabled
Static IP client tunneling....................... Enabled

Once Static client associate to LWAP2 , you can check client association details from both controllers. Here is the details as shown in WLC3. Few key points to remember here. WLC3 mobility state is “Export Foreign” . In normal layer3 roaming WLC3 state would be “Foreign”

(WLC3) >show client summary

Number of Clients................................ 1
MAC Address       AP Name           Status        WLAN           Auth Protocol         Port Wired
----------------- ----------------- ------------- -------------- ---- ---------------- ---- -----
00:22:fa:94:68:58 LWAP-02           Associated    5              Yes  802.11a          1    N/A

(WLC3) >show client detail 00:22:fa:94:68:58
Client MAC Address............................... 00:22:fa:94:68:58
Client Username ................................. user1
AP MAC Address................................... a0:cf:5b:9e:e8:20
AP Name.......................................... LWAP-02
Client State..................................... Associated
Client NAC OOB State............................. Access
Wireless LAN Id.................................. 5
BSSID............................................ a0:cf:5b:9e:e8:2b
Connected For ................................... 168 secs
Channel.......................................... 149
IP Address....................................... 10.10.14.60
Association Id................................... 1
Authentication Algorithm......................... Open System
Reason Code...................................... 1
Status Code...................................... 0
Client CCX version............................... 4
Client E2E version............................... 1
Re-Authentication Timeout........................ 1631
QoS Level........................................ Platinum
802.1P Priority Tag.............................. disabled
WMM Support...................................... Enabled
Power Save....................................... ON
Current Rate..................................... 54.0
Supported Rates.................................. 12.0,18.0,24.0,36.0,48.0,
    ............................................. 54.0
Mobility State................................... Export Foreign
Mobility Anchor IP Address....................... 10.10.112.10
Mobility Move Count.............................. 0
Security Policy Completed........................ Yes
Policy Manager State............................. RUN
Policy Manager Rule Created...................... Yes
ACL Name......................................... none
ACL Applied Status............................... Unavailable
Policy Type...................................... WPA2
Authentication Key Management.................... 802.1x
Encryption Cipher................................ CCMP (AES)
Management Frame Protection...................... No
EAP Type......................................... EAP-FAST
Interface........................................ data1
VLAN............................................. 22
Quarantine VLAN.................................. 0
Access VLAN...................................... 22

Here is the details as shown in WLC2. In here as well WLC2 mobility state is shown as ” Export Anchor” where as in normal layer 3 roam mobility state is “Anchor“.

(WLC2) >show client summary

Number of Clients................................ 1
MAC Address       AP Name           Status        WLAN/GLAN      Auth Protocol         Port Wired
----------------- ----------------- ------------- -------------- ---- ---------------- ---- -----
00:22:fa:94:68:58 10.10.120.140     Associated    5              Yes  Mobile           29   No

(WLC2) >show client detail 00:22:fa:94:68:58
Client MAC Address............................... 00:22:fa:94:68:58
Client Username ................................. N/A
AP MAC Address................................... 00:00:00:00:00:00
AP Name.......................................... N/A
Client State..................................... Associated
Client NAC OOB State............................. Access
Wireless LAN Id.................................. 5
BSSID............................................ 00:00:00:00:00:ff
Connected For ................................... 207 secs
Channel.......................................... N/A
IP Address....................................... 10.10.14.60
Association Id................................... 0
Authentication Algorithm......................... Open System
Reason Code...................................... 1
Status Code...................................... 0
Client CCX version............................... No CCX support
Mirroring........................................ Disabled
QoS Level........................................ Platinum
802.1P Priority Tag.............................. 6
WMM Support...................................... Disabled
Supported Rates..................................
Mobility State................................... Export Anchor
Mobility Foreign IP Address...................... 10.10.120.140
Mobility Move Count.............................. 1
Security Policy Completed........................ Yes
Policy Manager State............................. RUN
Policy Manager Rule Created...................... Yes
ACL Name......................................... none
ACL Applied Status............................... Unavailable
NPU Fast Fast Notified........................... Yes
Policy Type...................................... N/A
Encryption Cipher................................ None
Management Frame Protection...................... No
EAP Type......................................... 0
Interface........................................ data1
VLAN............................................. 14
Quarantine VLAN.................................. 0
Access VLAN...................................... 14

Here is the exact process of Static client roaming.

1. When Client moved to AP2, client IP address is updated either through an orphan packet handling or an ARP request processing by WLC3.
2. Since client IP subnet is not supported in WLC3, WLC3 send static IP mobile announcement to the rest of controllers in mobility list.
3. Since WLC2 support this client subnet it will respond to that announcement by WLC3.
4. As a result WLC3 becomes “Export Foreign” controller where as WLC2 becomes “Export Anchor” Controller.
5. Once WLC2 send acknowledgment client traffic is tunneled to WLC2.

There are few restrictions apply when configuring static IP tunneling with other features on the same WLAN.

1. Auto Anchoring Mobility (Guest Tunneling) cannot be configured for the same WLAN
2. H-REAP local Authentication cannot be configured for the same WLAN.
3. DHCP Required option cannot be configured for the same WLAN.

If you enable “debug mobility handoff” you can see these WLC state changes during client association. Here is the debug output of WLC3.(Export Foreign)

(WLC3) >debug mobility handoff enable

(WLC3) >*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.993: 00:22:fa:94:68:58 Zeroize AAA Overrides from local for station
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.993: Sending 802.11i PMK (Version_1) information to mobility group
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.993: 00:22:fa:94:68:58 0 PMK-update groupcast messages sent
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.993: Sending 802.11i PMK (Version_2) information to mobility group
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.993: 00:22:fa:94:68:58 0 PMK-update groupcast messages sent
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.998: 00:22:fa:94:68:58 Mobility query, PEM State: L2AUTHCOMPLETE
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58 Anchor Export:
    Client IP: 10.10.14.60, Anchor IP: 10.10.112.10
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58 Mobility packet sent to:
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58   10.10.112.10, port 16666
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58   type: 16(MobileAnchorExport)  subtype: 0  version: 1  xid: 16  seq: 139  len 250 flags 0
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58   group id: d8475d5f c64367e3 4d21c8d6 ef580f61
*Dot1x_NW_MsgTask_0: Mar 25 06:34:53.999: 00:22:fa:94:68:58   mobile MAC: 00:22:fa:94:68:58, IP: 10.10.14.60, instance: 0
*Dot1x_NW_MsgTask_0: Mar 25 06:34:54.000: 00:22:fa:94:68:58   VLAN IP: 10.10.22.130, netmask: 255.255.255.128
*Dot1x_NW_MsgTask_0: Mar 25 06:34:54.000: 00:22:fa:94:68:58 10.10.14.60 DHCP_REQD (7) Warning!: export foreign state set on client of non-export anchor wlan
   anchor switch: 10.10.112.10
*Dot1x_NW_MsgTask_0: Mar 25 06:34:54.001: 00:22:fa:94:68:58 10.10.14.60 DHCP_REQD (7) Plumbing duplex mobility tunnel to 10.10.112.10
    as Export Foreign (VLAN 22)
*mmListen: Mar 25 06:34:54.001: 00:22:fa:94:68:58 Mobility packet received from:
*mmListen: Mar 25 06:34:54.001: 00:22:fa:94:68:58   10.10.112.10, port 16666
*mmListen: Mar 25 06:34:54.001: 00:22:fa:94:68:58   type: 17(MobileAnchorExportAck)  subtype: 0  version: 1  xid: 16  seq: 265  len 275 flags 0
*mmListen: Mar 25 06:34:54.002: 00:22:fa:94:68:58   group id: fe2f34f3 9b7a7cea 68f48181 316db999
*mmListen: Mar 25 06:34:54.002: 00:22:fa:94:68:58   mobile MAC: 00:22:fa:94:68:58, IP: 10.10.14.60, instance: 1
*mmListen: Mar 25 06:34:54.002: 00:22:fa:94:68:58   VLAN IP: 10.10.14.10, netmask: 255.255.255.0
*mmListen: Mar 25 06:34:54.002: Switch IP: 10.10.112.10
*mmListen: Mar 25 06:34:54.002: 00:22:fa:94:68:58 Received Anchor Export Ack for client from Switch IP: 10.10.112.10
*mmListen: Mar 25 06:34:54.002: 00:22:fa:94:68:58 Anchor Mac: 00:0b:85:40:a1:c0, Old Foreign Mac: 00:1b:d5:cf:e6:00 New Foreign Mac: 00:1b:d5:cf:e6:00
*apfReceiveTask: Mar 25 06:34:54.003: 00:22:fa:94:68:58 10.10.14.60 DHCP_REQD (7) mobility role update request from Export Foreign to Export Foreign
  Peer = 10.10.112.10, Old Anchor = 10.10.112.10, New Anchor = 10.10.112.10
*apfReceiveTask: Mar 25 06:34:54.005: 00:22:fa:94:68:58 10.10.14.60 RUN (20) Warning!: export foreign state set on client of non-export anchor wlan
   anchor switch: 10.10.112.10
*apfReceiveTask: Mar 25 06:34:54.005: 00:22:fa:94:68:58 10.10.14.60 RUN (20) Plumbing duplex mobility tunnel to 10.10.112.10
    as Export Foreign (VLAN 22)
*apfReceiveTask: Mar 25 06:34:54.005: 00:22:fa:94:68:58 Mobility Response: IP 10.10.14.60 code Anchor Grant (4), reason Anchor exported (4), PEM State RUN, Role Export Foreign(5)

Here is the debut output of WLC2 (Export Anchor)

(WLC2) >debug mobility handoff enable

(WLC2) >*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 Mobility packet received from:
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   10.10.120.140, port 16666
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   type: 16(MobileAnchorExport)  subtype: 0  version: 1  xid: 16  seq: 139  len 250 flags 0
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   group id: d8475d5f c64367e3 4d21c8d6 ef580f61
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   mobile MAC: 00:22:fa:94:68:58, IP: 10.10.14.60, instance: 0
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   VLAN IP: 10.10.22.130, netmask: 255.255.255.128
*mmListen: Mar 24 19:37:39.966: Switch IP: 10.10.120.140
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 Received Anchor Export request: from Switch IP: 10.10.120.140
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 Anchor request for static IP client tunneling.
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 mmAnchorExportRcv:, Mobility role is ExpAnchor.
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 Received Anchor Export policy update, valid mask 0x0:
  Qos Level: 2, DSCP: 0, dot1p: 0  Interface Name: , ACL Name:
*mmListen: Mar 24 19:37:39.966: Anchor Mac : 00.0b.85.40.a1.c0
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 Mobility packet sent to:
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   10.10.120.140, port 16666
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   type: 17(MobileAnchorExportAck)  subtype: 0  version: 1  xid: 16  seq: 265  len 275 flags 0
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   group id: fe2f34f3 9b7a7cea 68f48181 316db999
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   mobile MAC: 00:22:fa:94:68:58, IP: 10.10.14.60, instance: 1
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58   VLAN IP: 10.10.14.10, netmask: 255.255.255.0
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 10.10.14.60 RUN (20) Warning!: export anchor state set on client of non-export anchor wlan
   foreign switch: 10.10.120.140
*mmListen: Mar 24 19:37:39.966: 00:22:fa:94:68:58 10.10.14.60 RUN (20) Plumbing duplex mobility tunnel to 10.10.120.140
    as Export Anchor (VLAN 14)
*spamReceiveTask: Mar 24 19:37:48.685: Mobility packet sent to:
*spamReceiveTask: Mar 24 19:37:48.685:   10.10.111.10, port 16666
*spamReceiveTask: Mar 24 19:37:48.685:   type: 19(ApListUpdate)  subtype: 0  version: 1  xid: 261  seq: 266  len 52 flags 0
*spamReceiveTask: Mar 24 19:37:48.685:   group id: fe2f34f3 9b7a7cea 68f48181 316db999

Refer WLC 7.0.116.0 configuration guide (pages 14-30) for more details

Related Posts

1. Wireless Mobility Basics
2. Configuring Mobility on WLC
3. L2-Inter Controller Roaming
4. L3-Inter Controller Roaming
5. WLC – Web Authentication
6. Configuring Auto Anchor
7. Auto-Anchor Foreign Mapping
8. Mobility Ping Tests
9. Configuring Wired Guest
10.
