WLAN Config via CLI – Part 1

Tags

In this post we will see how to learn CLI commands to configure a WLAN. I have created a WLAN called “Test-15” with wlan-id 15. Here are the default settings once you create a WLAN.

Here are the CLI commands generated by this basic WLAN creation. Once you take a back up of the WLC configuration you can derive this.

config wlan create 15 Test-15 Test-15
config wlan interface 15 management
config wlan broadcast-ssid enable 15
config wlan security wpa enable 15

config wlan wmm allow 15

config wlan session-timeout 15 1800
config wlan exclusionlist 15 60
config wlan mfp client enable 15

As you can see all the CLI commands start with “config wlan” & as long as you master the “config wlan” CLI commands you should be able to configure any WLAN specific features via CLI. Here is the full list

(WLC2) >config wlan ?

7920-support Configures support for phones.
IPv6Support Configures IPv6 support on a WLAN.
aaa-override Configures user policy override via AAA on a WLAN.
acl Specify a per-WLAN ACL
apgroup Manage AP Groups VLAN feature.
band-select Allow|Disallow Band Select on a WLAN.
broadcast-ssid Configures SSID Broadcast on a WLAN.
call-snoop Configures Call Snooping.
ccx Configure Cisco Client Extension options.
channel-scan Configures off channel scanning deferral parameters.
chd Enable/Disable CHD per WLAN
create Creates a WLAN.
custom-web Configures the Web Authentication Page per Profile.
delete Deletes a WLAN.
dhcp_server Configures the WLAN's DHCP Server.
diag-channel Configures Diagnostics Channel Capability on a WLAN.
disable Disables a WLAN.
dtim Configures the DTIM Period for a WLAN
enable Enables a WLAN.
exclusionlist Configures Exclusion-list timeout.
h-reap Configures H-REAP options for wlan.
interface Configures the WLAN's interface.
ldap Configures the WLAN's LDAP servers.
load-balance Allow|Disallow Load Balance on a WLAN.
local-auth Configures Local EAP Authentication.
mac-filtering Configures MAC filtering on a WLAN.
max-associated-clients Configures maximum no. of client connections on wlan/guest-lan/remote-lan.
media-stream Configures Media Stream.
mfp Configures Management Frame Protection.
mobility Configures the Inter-Switch Mobility Manager
multicast Configures the WLAN's multicast parameters.
nac Configures NAC on wlan/guest-lan/remote-lan.
peer-blocking Configure peer-to-peer blocking on a WLAN.
qos Configures Quality of Service policy.
radio Configures the Radio Policy.
radius_server Configures the WLAN's RADIUS Servers.
roamed-voice-client Configure Voice Client Re-Anchor policy
security Configures the security policy for a WLAN.
session-timeout Configures client timeout.
sip-cac Configure SIP CAC Failure policy.
static-ip Configures static IP client tunneling support on a WLAN.
uapsd Configures UAPSD.
webauth-exclude Enable/Disable WebAuth Exclusion
wmm Configures WMM (WME).

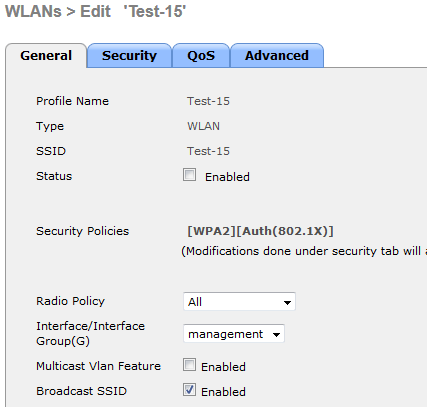

There are 44 commands… How do you remember this… Let’s break it down to the section corresponds to GUI.

Here is the corresponding CLI for this section.

(WLC2) >config wlan ?

create         Creates a WLAN.
broadcast-ssid Configures SSID Broadcast on a WLAN.
interface      Configures the WLAN's interface.
disable        Disables a WLAN.
enable         Enables a WLAN.
delete         Deletes a WLAN.
radio          Configures the Radio Policy.
multicast      Configures the WLAN's multicast parameters.

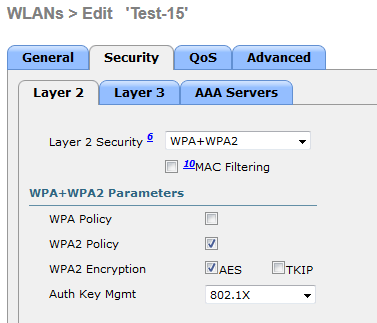

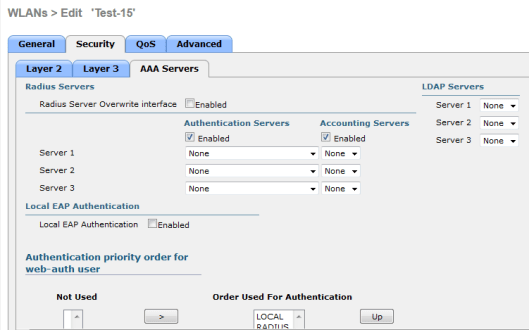

Here is the security section related configs

security       Configures the security policy for a WLAN.

webauth-exclude Enable/Disable WebAuth Exclusion
custom-web     Configures the Web Authentication Page per Profile.

radius_server  Configures the WLAN's RADIUS Servers.
ldap           Configures the WLAN's LDAP servers.
local-auth     Configures Local EAP Authentication.
mac-filtering  Configures MAC filtering on a WLAN.

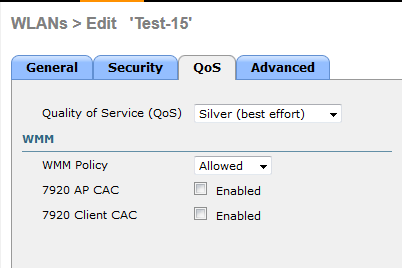

Here is the QoS related configurations

(WLC2) > config wlan ?

qos            Configures Quality of Service policy.
wmm            Configures WMM (WME).
7920-support   Configures support for phones.
media-stream   Configures Media Stream.
uapsd          Configures UAPSD.

Next Advanced Configuration Settings of a WLAN

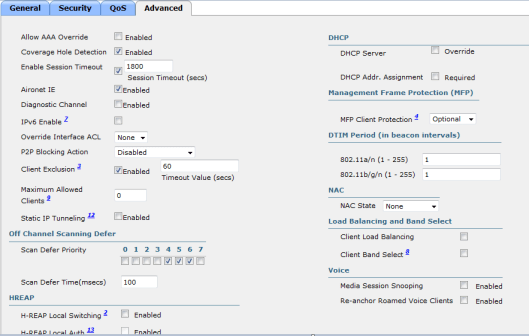

Here is the CLI commands relevant to this section

(WLC2) > config wlan ?

aaa-override   Configures user policy override via AAA on a WLAN.
chd            Enable/Disable CHD per WLAN
session-timeout Configures client timeout.
ccx            Configure Cisco Client Extension options.
diag-channel   Configures Diagnostics Channel Capability on a WLAN.
IPv6Support    Configures IPv6 support on a WLAN.
acl            Specify a per-WLAN ACL
peer-blocking  Configure peer-to-peer blocking on a WLAN.
exclusionlist  Configures Exclusion-list timeout.
max-associated-clients Configures maximum no. of client connections on wlan/guest-lan/remote-lan.
channel-scan   Configures off channel scanning deferral parameters.
h-reap         Configures H-REAP options for wlan.
dhcp_server    Configures the WLAN's DHCP Server.
static-ip      Configures static IP client tunneling support on a WLAN.
mfp            Configures Management Frame Protection.
dtim           Configures the DTIM Period for a WLAN
nac            Configures NAC on wlan/guest-lan/remote-lan.
load-balance   Allow|Disallow Load Balance on a WLAN.
band-select    Allow|Disallow Band Select on a WLAN.
call-snoop     Configures Call Snooping.
sip-cac        Configure SIP CAC Failure policy.
roamed-voice-client Configure Voice Client Re-Anchor policy

There are two other places we will configure WLAN features. If you want to configure “Auto Anchor” or “AP Group” you have to use the following CLI commands

mobility       Configures the Inter-Switch Mobility Manage
apgroup        Manage AP Groups VLAN feature.

In next post we will drill in to more detail on each section.

1. Configuring WLAN via CLI – Part 2
2. Configuring WLAN via CLI – Part 3
3. Configuring WLAN via CLI – Part 4
4. Configuring WLAN via CLI – Part 5
5. Configuring WLAN via CLI – Part 6
