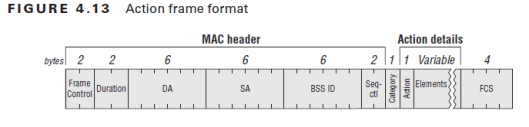

Action Frames are a type of management frame used to trigger an action in the cell. Action frame format is as shown below
Category – Describes the action frame type. Here are the different category type of Action frames (per 802.11-2007 standard where current CWAP exam is based on)
0 – Spectrum Management
1 : QoS
2 : DLS
3 : Block ACK
4 : Public
5 : Radio Measurement
6 : Fast BSS Transistion
7 : High Throughput (HT)
8 : SA Query
9 : Protected dual of public action
10-125 : Reserved/Unused
126 : Vendor specific protected
127 : Vendor specific
128-255: Error
Action – The action to perform, it is usually a number represent different actions
Element– Adds additional information specific to the action
Here are few example for captures of Action Frames. For the full list of action frame code values refer table 4.10 of CWAP Official Study Guide (page 165-168). If you want to know more information including other type of action frames refer IEEE 802.11-2012 section 8.5 (page 726- 812). Here is a brief description of selected type of action frame category.
You can filter Action Frames in wireshark using below filter (management frames with subtype value 13 ).
(wlan.fc.type == 0)&&(wlan.fc.type_subtype == 0x0d)
1. Spectrum Management (Category 0)
0 : Measurement Request
1 : Measurement Report
2 : TPC Request
3 : TPC Report
4 : Channel Switch Announcement
5-255 : Reserved

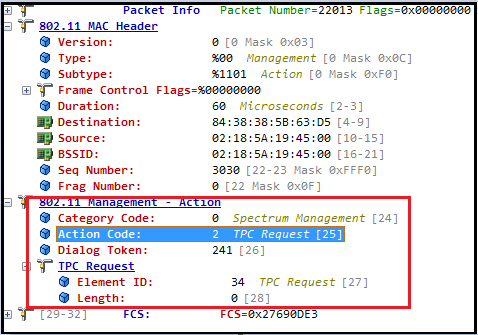

Here is a sample capture of TPC Request action frame with action code 2.

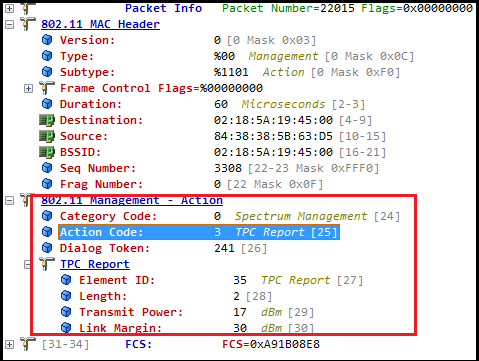

Here is a sample capture of TPC Report action frame with action code 3.
2. QoS Action Frames (Category 1)
QoS action frames has different code values with below description of that action
0 : ADDTS Request
1 : ADDTS Response
2 : DELTS
3 : Shedule
4 : QoS Map Configure
5-255 : Unused/Reserved

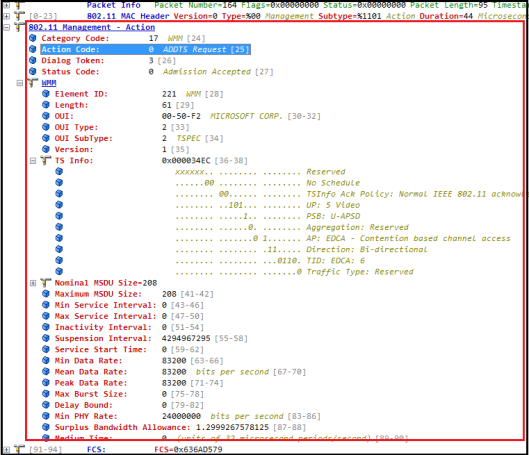

Below shows a ADDTS Request action frame witch action code of 0.

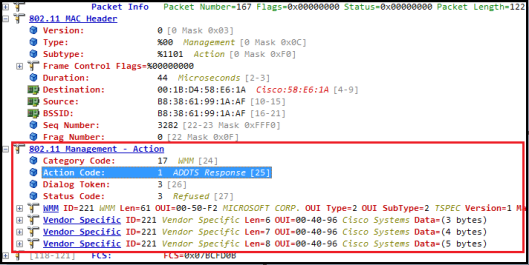

Below shows a ADDTS Response action frame with action code of 1.
3. DLS Action Frames (Category 2)
0 : DLS Request
1 : DLS Response
2: DLS Teardown
3-255 : Reserved
4. Block ACK Action Frames (Category 3)
Block ACK action frames have following code values
0 : ADDBA Request
1 : ADDBA Response
2 : DELBA
3-255: Unsued/Reserved
Below shows a ADDBA Request action frame with action code value of 0

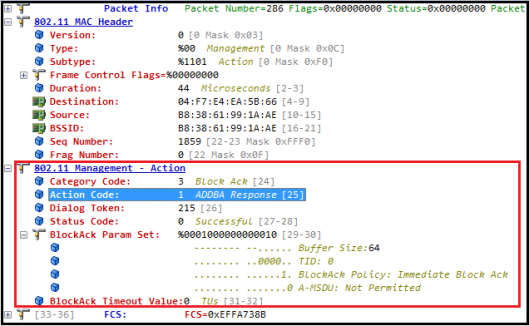

Below shows a ADDBA Request action frame with action code value of 1.
5. Radio measurement Action Frames (Category 5)
Radio Measurement action frames action code as given below
0 : Radio measurement request
1 : Radio measurement report
2 : Link measurement request
3 : Link measurement report
4 : Neighbor report request
5 : Neighbor report response
6-255 : Unused/Reserved
Below shows a Neighbor Report Request action frame with action code value of 4. (typically used with 802.11k)

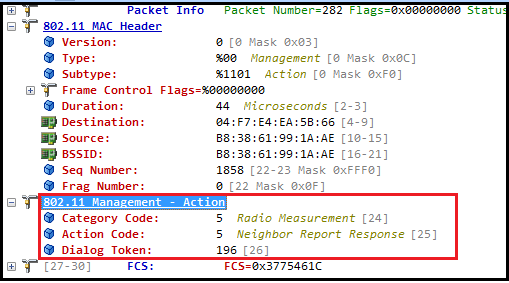

Below shows a Neighbor Report Response action frame with action code value of 5. (typically used with 802.11k)
6. Fast BSS Transition Action Frames(Category 6)
Fast BSS transition action category is having following code values
0 : Reserved
1 : FT Request – Sent by STA to its associated AP to initiate over-the-DS FT.
2 : FT Response – Tx by currently associated AP to the station sent FT request
3 : FT confirm – Confirmation to the target AP of receipt of the ANonce
4 : FT ACK – Tx by currently associatd AP as a response to STA’s FT confirm frame.
5-255 : Reserved

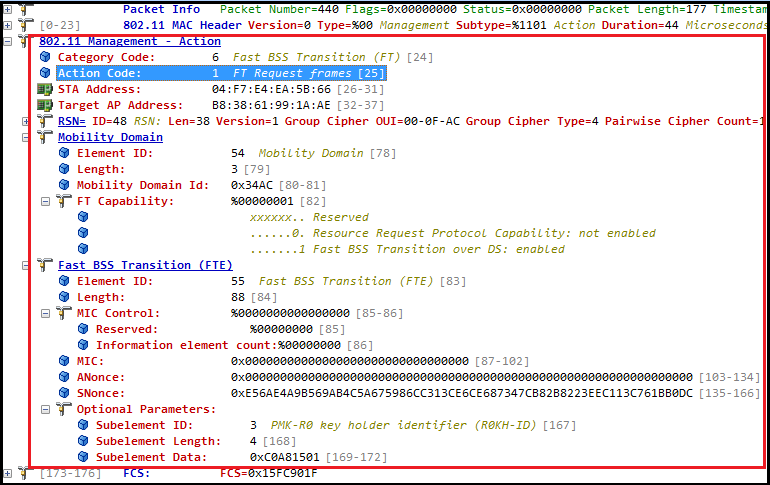

Below shows a FT Request action frame with action code value of 1. (typically used with 802.11r when a station first associate to a network)
7. HT Action frames (Category 7)
0 : Notify Channel Width
1 : SM Power Save
2 : PMSP
3 : Set PCO Phase
4 : CSI
5 : Noncompressed Beamforming
6 : Compressed Beamforming
7 : ASEL Indices Feedback
8-255 : Reserved
8. SA Query Action Frames (Category 8)
0 : SA Query Request
1 : SA Query Response
9. Protected Public Action Frames (Category 9)
This is to allow robust STA-STA of the same information that is conveyed in Action Frames that are not robust.
10. WNM Action Frames (Category 17)
This is defined for Wireless Network Management (WNM) purposes
11. VHT Action Frames (Category x)
Used in 802.11ac
0 : VHT compressed Beamforming
1 : Group ID Management
2 : Operating Mode Notification
3-255 : Reserved

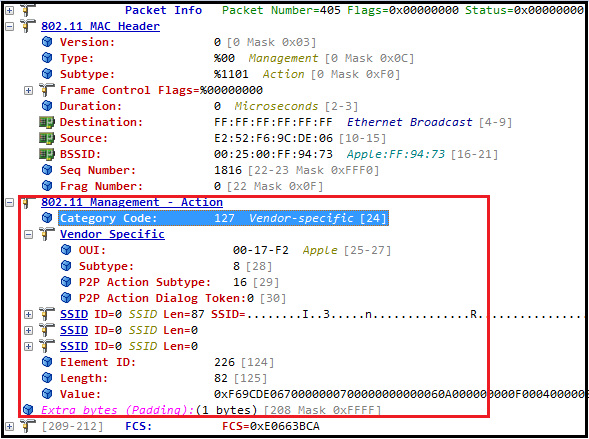

12. Vendor Specific (Category 127)
References
1. CWAP Official Study Guide – Chapter 4
2. IEEE 802.11-2012 standard.
