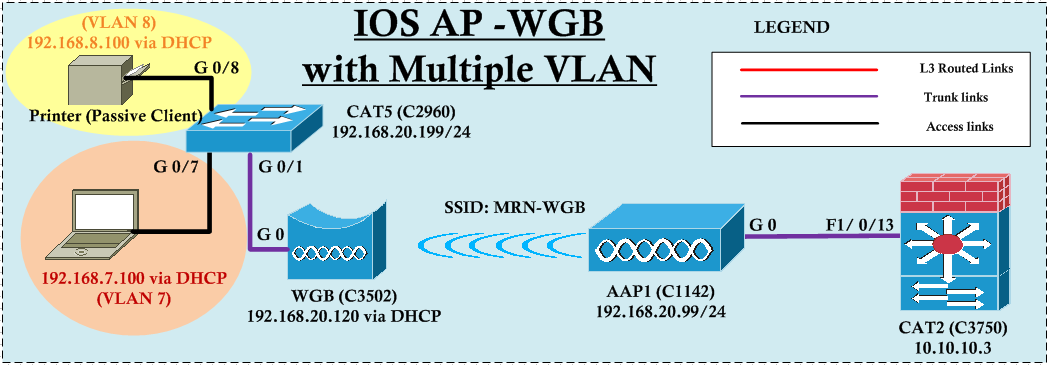

In this post we will see how to configure a WGB to support multiple VLAN for the wired clients behind WGB. Here is the topology for this post where VLAN7 & VLAN8 defined for the wired clients behind WGB. VLAN20 is used as native VLAN & AAP1, WGB & CAT5 is assigned IPs in that vlan.
In Autonomous mode, WGB should be a “infrastructure-client” in order to support Multiple VLAN.
Here is the CAT2 configuration where DHCP pools & SVI defined.
ip dhcp excluded-address 192.168.7.1 192.168.7.99 ip dhcp excluded-address 192.168.8.1 192.168.8.99 ip dhcp excluded-address 192.168.20.1 192.168.20.99 ! ip dhcp pool VLAN7 network 192.168.7.0 255.255.255.0 default-router 192.168.7.1 domain-name mrn.com dns-server 192.168.200.1 address 192.168.7.100 client-id 0100.1f16.18df.ec <- PC IP reservation ! ip dhcp pool VLAN8 network 192.168.8.0 255.255.255.0 default-router 192.168.8.1 domain-name mrn.com dns-server 192.168.200.1 address 192.168.8.100 client-id 0000.18fe.a5dc.3e <- Printer IP reservation ! ip dhcp pool vlan20 network 192.168.20.0 255.255.255.0 default-router 192.168.20.254 dns-server 192.168.200.1 192.231.203.132 192.231.203.3 domain-name mrn.com address 192.168.20.120 client-id 0144.d3ca.af43.43<- WGB IP reservation ! interface FastEthernet1/0/13 description TEMP-AAP1-1142 switchport trunk encapsulation dot1q switchport trunk native vlan 20 switchport mode trunk
You can configure AAP1 as shown below. Note that SSID configured as “infrastructure-SSID” in order to only infrastructure devices can associate to SSID. Also configured Dot11 Radio 1 as “infrastructure-client” in order to make sure WGB associate in “infrastructure-client” mode. This is mandatory to support multiple vlan behind WGB in this IOS-AP-WGB mode.(In Unified method still client mode WGB support this feature with “workgroup-bridge unified-vlan-client” on WGB). This also give reliability for Multicast traffic for the client behind WGB. WLAN security is configured with WPA2-PSK.
hostname AAP1 dot11 ssid MRN-WGB vlan 20 authentication open authentication key-management wpa version 2 infrastructure-ssid wpa-psk ascii MRN-CCIEW ! interface Dot11Radio1 encryption vlan 20 mode ciphers aes-ccm ssid MRN-WGB station-role root infrastructure-client ! interface Dot11Radio1.7 encapsulation dot1Q 7 bridge-group 7 ! interface Dot11Radio1.8 encapsulation dot1Q 8 bridge-group 8 ! interface Dot11Radio1.20 encapsulation dot1Q 20 native bridge-group 1 ! interface GigabitEthernet0.7 encapsulation dot1Q 7 bridge-group 7 ! interface GigabitEthernet0.8 encapsulation dot1Q 8 bridge-group 8 ! interface GigabitEthernet0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface BVI1 ip address 192.168.20.99 255.255.255.0 no ip route-cache ! ip default-gateway 192.168.20.254 sntp server 10.10.205.20
WGB can be configured as shown in below. “station-role” should be “workgroup-bridge”.
hostname WGB dot11 ssid MRN-WGB vlan 20 authentication open authentication key-management wpa version 2 infrastructure-ssid wpa-psk ascii MRN-CCIEW ! interface Dot11Radio1 encryption vlan 20 mode ciphers aes-ccm ssid MRN-WGB station-role workgroup-bridge ! interface Dot11Radio1.7 encapsulation dot1Q 7 bridge-group 7 ! interface Dot11Radio1.8 encapsulation dot1Q 8 bridge-group 8 ! interface Dot11Radio1.20 encapsulation dot1Q 20 native bridge-group 1 ! interface GigabitEthernet0.7 encapsulation dot1Q 7 bridge-group 7 ! interface GigabitEthernet0.8 encapsulation dot1Q 8 bridge-group 8 ! interface GigabitEthernet0.20 encapsulation dot1Q 20 native bridge-group 1 ! interface BVI1 ip dhcp client client-id GigabitEthernet0 <- IP for WGB Mgmt purposes ip address dhcp
CAT5 (Switch Behind WGB) can be configured as follows.
vlan 7-8,20 ! interface GigabitEthernet0/1 description WGB TRUNK switchport trunk native vlan 20 switchport trunk allowed vlan 7-9,20 switchport mode trunk switchport nonegotiate spanning-tree portfast trunk ! interface GigabitEthernet0/7 description WGB-PC switchport access vlan 7 switchport mode access spanning-tree portfast ! interface GigabitEthernet0/8 description WGB-Printer switchport access vlan 8 switchport mode access spanning-tree portfast ! interface Vlan20 description SW-MGMT ip address 192.168.20.199 255.255.255.0 ! ip default-gateway 192.168.20.254 ntp server 10.10.205.20
Once you configure like this, you can verify the devices will get the IP addresses from each VLAN.
AAP1#sh dot11 associations client 802.11 Client Stations on Dot11Radio1: SSID [MRN-WGB] : MAC Address IP address Device Name Parent State 0018.fea5.dc3e 192.168.8.100 WGB-client - 44d3.caaf.4343 Assoc 001f.1618.dfec 192.168.7.100 WGB-client - 44d3.caaf.4343 Assoc 58bf.ea59.f801 0.0.0.0 WGB-client - 44d3.caaf.4343 Assoc 58bf.ea59.f841 192.168.20.199 WGB-client - 44d3.caaf.4343 Assoc
Initially you could reach all of the wired clients behind WGB. But few minutes later You would notice you could not ping the printer IP. This is because printer is a passive client (where no traffic initiated from it) to keep it is MAC address in the WGB bridge table.
You could avoid this in following ways.
1. Increase the aging-out timer
2. Add static entry in WGB for the passive client
You can configure aging time for a bridge-group as follows. You can configure larger aging-time for the bridge group where Printer (or passive client) associates. In my case I will configure this for bridge-group 8.
WGB(config)#bridge ?
<1-255> Bridge Group number for Bridging.
crb Concurrent routing and bridging
irb Integrated routing and bridging
mac-address-table MAC-address table configuration commands
WGB(config)#bridge 8 ?
acquire Dynamically learn new, unconfigured stations
address Block or forward a particular Ethernet address
aging-time Set forwarding entry aging time
bitswap-layer3-addresses Bitswap embedded layer 3 MAC addresses
bridge Specify a protocol to be bridged in this bridge group
circuit-group Circuit-group
domain Establish multiple bridging domains
forward-time Set forwarding delay time
hello-time Set interval between HELLOs
lat-service-filtering Perform LAT service filtering
max-age Maximum allowed message age of received Hello BPDUs
priority Set bridge priority
protocol Specify spanning tree protocol
route Specify a protocol to be routed in this bridge group
subscriber-policy Subscriber group bridging
WGB(config)#bridge 8 aging-time ?
<10-1000000> Seconds
WGB(config)#bridge 8 aging-time 86400
You can achieve the same by configuring static entry in the WrGB bridge table. In this way given MAC address will not be age out from the WGB table.
WGB(config)#bridge 8 ?
acquire Dynamically learn new, unconfigured stations
address Block or forward a particular Ethernet address
aging-time Set forwarding entry aging time
bitswap-layer3-addresses Bitswap embedded layer 3 MAC addresses
bridge Specify a protocol to be bridged in this bridge group
circuit-group Circuit-group
domain Establish multiple bridging domains
forward-time Set forwarding delay time
hello-time Set interval between HELLOs
lat-service-filtering Perform LAT service filtering
max-age Maximum allowed message age of received Hello BPDUs
priority Set bridge priority
protocol Specify spanning tree protocol
route Specify a protocol to be routed in this bridge group
subscriber-policy Subscriber group bridging
WGB(config)#bridge 8 address ?
H.H.H Ethernet mac-address
WGB(config)#bridge 8 address 0018.fea5.dc3e ?
discard Discard datagrams from/to this address
forward Forward datagrams from/to this address
WGB(config)#bridge 8 address 0018.fea5.dc3e forward ?
Async Async interface
Auto-Template Auto-Template interface
BVI Bridge-Group Virtual Interface
CDMA-Ix CDMA Ix interface
CTunnel CTunnel interface
Dialer Dialer interface
Dot11Radio Dot11 interface
GigabitEthernet GigabitEthernet IEEE 802.3z
LongReachEthernet Long-Reach Ethernet interface
Loopback Loopback interface
Multilink Multilink-group interface
Null Null interface
Tunnel Tunnel interface
Vif PGM Multicast Host interface
Virtual-Dot11Radio Virtual dot11 interface
Virtual-PPP Virtual PPP interface
Virtual-Template Virtual Template interface
Virtual-TokenRing Virtual TokenRing
vmi Virtual Multipoint Interface
WGB(config)#bridge 8 address 0018.fea5.dc3e forward g0.8
There are few other timers available if you require further optimization of these timer values.(Introduced in 12.4(25d)JA release & later). I have not changed default timer values in this example.
WGB(config)#workgroup-bridge ? client-vlan Ethernet client VLAN number timeouts Fine tuning WGB time-outs config commands unified-vlan-client Enable Unified VLAN client WGB(config)#workgroup-bridge timeouts ? assoc-response Association Response time-out value auth-response Authentication Response time-out value client-add client-add time-out value eap-timeout EAP Timeout value iapp-refresh IAPP Refresh time-out value WGB(config)#workgroup-bridge timeouts assoc-response ? <300-5000> Milli Seconds <- Default 5000 ms WGB(config)#workgroup-bridge timeouts auth-response ? <300-5000> Milli Seconds <- Default 5000 ms WGB(config)#workgroup-bridge timeouts client-add ? <300-5000> Milli Seconds <- Default 5000 ms WGB(config)#workgroup-bridge timeouts eap-timeout ? <2-60> Seconds <-Defult 0 WGB(config)#workgroup-bridge timeouts iapp-refresh ? <100-1000> Milli Seconds <- Default 5000 ms
In case the switch behind the WGB is not supporting VLAN (like Hub, etc) you can assign all wired client to a single VLAN by using “workgroup-bridge client vlan <vlan-id>” command.
You can refer the following Reference guide for CLI command explanations in detail.
1. IOS Command Reference – Cisco IOS Releases 15.2(2)JA, 12.4(25d)JA, and 12.3(8)JEE
2. Cisco DOC-21999 :WGB with multiple VLANs
