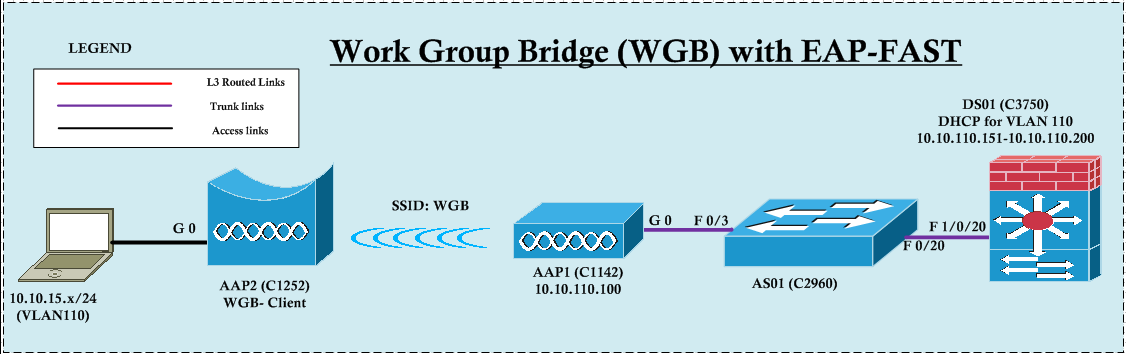

In this post we will see how to configure security for basic Autonomous WGB solution. Here is the topology I will use for this post. A Laptop connected to the WGB (1252 AP) ethernet port & it is expected to get an IP in vlan 110 (native vlan for the AAP1) where DHCP is defined on DS01.

WGB-EAP

Here is the basic configuration of WGB without any security.

hostname AAP1
dot11 ssid WGB
   vlan 110
   authentication open
   infrastructure-ssid
interface Dot11Radio1
 ssid WGB
 infrastructure-client
interface Dot11Radio1.110
 encapsulation dot1Q 110 native
 bridge-group 1
interface GigabitEthernet0.110
 encapsulation dot1Q 110 native
 bridge-group
!
interface BVI1
ip address 10.10.110.100 255.255.255.0
ip default-gateway 10.10.110.3

Here is the config of AAP2 (or WGB) as I configured in the config prompt. You will notice as soon as you enable the interface WGB is associated to the AAP1.

hostname AAP2
dot11 ssid WGB
   vlan 110
   authentication open
interface Dot11Radio1
 ssid WGB
 station-role workgroup-bridge
interface Dot11Radio1.110
 encapsulation dot1Q 110 native
 bridge-group 1
interface GigabitEthernet0.110
 encapsulation dot1Q 110 native
 bridge-group 1

Once you configure this & enable the Radio1 interface (where I configured WGB SSID) you will see AAP2 associated to AAP1. Also PC connected to AAP2 will get an IP from the DHCP pool defined on DS01

*Apr 28 11:18:01.031: %DOT11-6-ASSOC: Interface Dot11Radio1, Station AAP2 68ef.bd0f.d95a Associated KEY_MGMT[NONE]
*Apr 28 11:18:01.791: %DOT11-6-ASSOC: Interface Dot11Radio1, Station AAP2 68ef.bd0f.d95a Associated KEY_interface GigabitEthernet0
*Apr 28 11:19:10.030: %DOT11-6-ADD: Interface Dot11Radio1, Station 001f.1618.dfec Associated to Parent 68ef.bd0f.d95a
!
AAP1#sh dot11 associations
802.11 Client Stations on Dot11Radio1:
SSID [WGB] :
MAC Address    IP address      Device        Name            Parent         State
001f.1618.dfec 10.10.110.151   WGB-client    -               68ef.bd0f.d95a Assoc
68ef.bd0f.d95a 10.10.110.101   WGB           AAP2            self           Assoc

Now we will see how we can configure this with EAP-FAST with WPA2/AES encryption. AAP1 will act as local radius and first will configure AAP1 for this.  Here are the CLI commands to configure AAP1 for local radius. A user created (wgbuser) with password (wgbpassword) for local authentication. Since we are testing EAP-FAST, I have disabled LEAP & MAC authentication which is enabled by default when we configure local radius.

aaa new-model
aaa group server radius RAD-GROUP
 server 10.10.110.100 auth-port 1812 acct-port 1813
aaa authentication login EAP-METHODS group RAD-GROUP
radius-server local
  no authentication leap
  no authentication mac
  nas 10.10.110.100 key 0 MRN-CCIEW
  user wgbuser password wgbpassword
radius-server host 10.10.110.100 auth-port 1812 acct-port 1813 key 0 MRN-CCIEW

dot11 ssid WGB
   authentication open eap EAP-METHODS
   authentication network-eap EAP-METHODS
   authentication key-management wpa version 2
interface Dot11Radio1
 encryption vlan 110 mode ciphers aes-ccm

Now in the WGB, you have to configure same encryption & authentication key management. Even though we are not configuring any radius config in WGB, to define the authentication key-management we have to configure some fake eap methods. Also you need to create EAP Profile & dot1x Credential for WGB as shown in the below.

dot11 ssid WGB
   authentication open eap EAP-METHODS <- any fake name to be used
   authentication network-eap EAP-METHODS <- any fake name to be used
   authentication key-management wpa version 2
interface Dot11Radio1
 encryption vlan 110 mode ciphers aes-ccm

AAP2(config)#eap profile FAST
AAP2(config-eap-profile)#method fast

AAP2(config-eap-profile)#method ?
  fast      EAP-FAST method allowed
  gtc       EAP-GTC method allowed
  leap      EAP-LEAP method allowed
  md5       EAP-MD5 method allowed
  mschapv2  EAP-MSCHAPV2 method allowed
  tls       EAP-TLS method allowed

AAP2(config)#dot1x credentials  FAST
AAP2(config-dot1x-creden)#username wgbuser
AAP2(config-dot1x-creden)#password wgbpassword

AAP2(config)#dot11 ssid WGB
AAP2(config-ssid)#dot1x eap profile FAST
AAP2(config-ssid)#dot1x credentials FAST

*Mar 14 16:45:45.955: %DOT11-4-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AAP1 a40c.c31a.ee60 [EAP-FAST WPAv2]

You can see WGB associated to AAP1 via EAP-FAST. You can use “show radius local-server statistics” AAP1 to confirm or failure reasons (if any)

AAP1#show radius local-server statistics
Successes              : 1           Unknown usernames      : 0
Client blocks          : 0           Invalid passwords      : 0
Unknown NAS            : 0           Invalid packet from NAS: 0

NAS : 10.10.110.100
Successes              : 1           Unknown usernames      : 0
Client blocks          : 0           Invalid passwords      : 0
Corrupted packet       : 0           Unknown RADIUS message : 0
No username attribute  : 0           Missing auth attribute : 0
Shared key mismatch    : 0           Invalid state attribute: 0
Unknown EAP message    : 0           Unknown EAP auth type  : 0
Auto provision success : 1           Auto provision failure : 0
PAC refresh            : 0           Invalid PAC received   : 0

Username                  Successes  Failures  Blocks
wgbuser                           1         0       0

If you want to configure LEAP, it is the similar process where you configure EAP profile method as “LEAP”.
