Network Time Protocol (NTP) is used to synchronize a device clock with external NTP server. You can configure a Cisco IOS router as NTP server by configuring “ntp master <stratum> ” CLI command. Stratum indicate how many times information (time-snyc) being relayed. For example your router is connected to a IP clock directly then stratum is 1.
Switches cannot be configured for this command as it is not supported on those platform. But when a switch get time from external source, it can relay the time information to other devices on your network. In other words the given switch (let’s say CAT2) has been configured as client (for an external source – CME) then other devices (CAT1, CAT3, CAT4) can be configured as NTP client of CAT2.
We will use following topology to see how we can configure NTP
In my CME router configured for external time server & get the time from that. Let’s say we want to make that NTP master with stratum 2. If you want to specify the source interface of NTP packets you can use “ntp soure <interface>” CLI command. So here is my configuration in CME.
CME(config)#ntp server 131.172.4.103 CME(config)#ntp master 2 CME(config)#ntp source loopback 0
Now you can configure all your internal devices to sync with CME by using “ntp server 10.10.205.20” command. But in this exercise we will configure CAT2 for that & make other switches get time from CAT2. Here is how you can configure it & verify on CAT2. I have made ntp source as vlan 10 (this is not mandatory). Note that stratum is 2 which is configured on our CME.
CAT2(config)#ntp server 10.10.205.20 CAT2(config)#ntp source vlan10 CAT2(config)#do sh clock 05:22:05.980 AEST Sun Apr 28 2013 CAT2(config)#do sh ntp ass address ref clock st when poll reach delay offset disp *~10.10.205.20 131.172.4.103 2 1 1024 377 3.3 -0.23 0.5 * master (synced), # master (unsynced), + selected, - candidate, ~ configured CAT2(config)#do sh ntp ass detail 10.10.205.20 configured, our_master, sane, valid, stratum 2 ref ID 131.172.4.103, time D526A1E1.60763209 (05:13:37.376 AEST Sun Apr 28 2013) our mode client, peer mode server, our poll intvl 1024, peer poll intvl 1024 root delay 6.38 msec, root disp 0.90, reach 377, sync dist 6.226 delay 3.31 msec, offset -0.2291 msec, dispersion 0.49 precision 2**24, version 3 org time D526A3E0.A281F68F (05:22:08.634 AEST Sun Apr 28 2013) rcv time D526A3E0.A2FDB02D (05:22:08.636 AEST Sun Apr 28 2013) xmt time D526A3E0.A222B4D9 (05:22:08.633 AEST Sun Apr 28 2013) filtdelay = 3.31 2.53 2.64 1.31 2.84 2.62 3.80 2.66 filtoffset = -0.23 0.25 0.08 0.76 0.01 0.10 -0.48 0.08 filterror = 0.02 0.03 0.05 0.06 0.08 0.09 0.11 0.12
Here is CAT1 configuration & verification. Note that stratum has changed to 3 which indicate an additional hop in the time relaying process.
CAT1(config)#ntp source Vlan10 CAT1(config)#ntp server 10.10.10.3 CAT1(config)#do sh clock 05:57:11.867 AEST Sun Apr 28 2013 CAT1(config)#do sh ntp ass address ref clock st when poll reach delay offset disp *~10.10.10.3 10.10.205.20 3 0 64 377 1.4 -0.68 0.2 * master (synced), # master (unsynced), + selected, - candidate, ~ configured
Now let’s add some complexity with Authentication. In NTP, client is the one who needs to authenticate NTP server is valid (Not like normal client-server environment where server authenticates client). Therefore you have to configure NTP authentication commands on client devices & only ntp-key is required to configure on NTP server.
Here are the NTP authentication configuration required at client (CAT1) device.
CAT1(config)#ntp authenticate CAT1(config)#ntp authentication-key 1 md5 mrn-cciew CAT1(config)#ntp trusted-key 1 CAT1(config)#ntp server 10.10.10.3 key 1
Only authentication key to be configured on NTP server (CAT2)
CAT2(config)#ntp authentication-key 1 md5 mrn-cciew
Now you can verify proper NTP authentication on client by using “show ntp association detail” command. Here is the output at CAT1.
CAT1#show ntp associations detail 10.10.10.3 configured, authenticated, our_master, sane, valid, stratum 3 ref ID 10.10.205.20, time D526ABE0.AF0826E0 (05:56:16.683 AEST Sun Apr 28 2013) our mode client, peer mode server, our poll intvl 64, peer poll intvl 64 root delay 10.10 msec, root disp 2.29, reach 363, sync dist 135.666 delay 4.10 msec, offset 0.3546 msec, dispersion 126.28 precision 2**18, version 3 org time D526AE45.487C7C0C (06:06:29.283 AEST Sun Apr 28 2013) rcv time D526AE45.48EBF37A (06:06:29.284 AEST Sun Apr 28 2013) xmt time D526AE45.47D3378B (06:06:29.280 AEST Sun Apr 28 2013) filtdelay = 4.10 8.47 0.00 2.47 4.38 4.06 4.26 3.54 filtoffset = 0.35 2.86 0.00 -0.53 -0.67 -0.33 -0.12 -0.91 filterror = 0.02 0.93 16000.0 3.57 4.55 5.52 6.50 7.48
You can configure an ACL to control what devices can get time from your NTP server. In our example will configure an ACL on CAT2 & control what devices can get time from that. Here is the configuration syntax for that.
CAT2(config)#ntp ? access-group Control NTP access allow Allow processing of packets authenticate Authenticate time sources authentication-key Authentication key for trusted time sources broadcastdelay Estimated round-trip delay clock-period Length of hardware clock tick logging Enable NTP message logging max-associations Set maximum number of associations peer Configure NTP peer server Configure NTP server source Configure interface for source address trusted-key Key numbers for trusted time sources CAT2(config)#ntp access-group ? peer Provide full access query-only Allow only control queries serve Provide server and query access serve-only Provide only server access CAT2(config)#ntp access-group serve-only ? <1-99> Standard IP access list <1300-1999> Standard IP access list (expanded range) CAT2(config)#ntp access-group serve-only 10 CAT2(config)#access-list 10 permit 10.10.10.2 CAT2(config)#access-list 10 permit 10.10.10.4 CAT2(config)#access-list 10 permit 10.10.10.4
Here is the CAT3 & CAT4 configuration & verification of authenticated NTP time synchronization.
CAT3(config)#ntp source vlan10 CAT3(config)#ntp authenticate CAT3(config)#ntp authentication-key 1 md5 mrn-cciew CAT3(config)#ntp trusted-key 1 CAT3(config)#ntp server 10.10.10.3 key 1 CAT3(config)#do sh ntp ass de 10.10.10.3 configured, authenticated, our_master, sane, valid, stratum 3 ref ID 10.10.205.20, time D526AFE0.B227FFFE (06:13:20.695 AEST Sun Apr 28 2013) our mode client, peer mode server, our poll intvl 1024, peer poll intvl 1024 root delay 9.35 msec, root disp 2.61, reach 377, sync dist 9.064 delay 2.58 msec, offset -1.1192 msec, dispersion 0.49 precision 2**18, version 3 org time D526B0FB.D9EFA0D0 (06:18:03.851 AEST Sun Apr 28 2013) rcv time D526B0FB.DA8DADFF (06:18:03.853 AEST Sun Apr 28 2013) xmt time D526B0FB.D9D8BFCD (06:18:04.849 AEST Sun Apr 28 2013) filtdelay = 1.53 2.58 2.81 3.28 1.80 2.61 4.44 3.22 filtoffset = -1.54 -1.12 -0.98 -2.42 -1.36 -1.44 -1.76 -1.97 filterror = 0.02 0.03 0.05 0.06 0.08 0.09 0.11 0.12 CAT4(config)#ntp source vlan20 CAT4(config)#ntp authenticate CAT4(config)#ntp authentication-key 1 md5 mrn-cciew CAT4(config)#ntp trusted-key 1 CAT4(config)#ntp server 10.10.10.3 key 1 CAT4(config)#do sh ntp ass de 10.10.10.3 configured, authenticated, our_master, sane, valid, stratum 3 ref ID 10.10.205.20, time D526AFE0.B227FFFE (06:13:20.695 AEST Sun Apr 28 2013) our mode client, peer mode server, our poll intvl 64, peer poll intvl 64 root delay 9.35 msec, root disp 2.61, reach 1, sync dist 15883.652 delay 2.72 msec, offset -2.0256 msec, dispersion 15875.02 precision 2**18, version 3 org time D526B1D5.AA79C247 (06:21:41.665 AEST Sun Apr 28 2013) rcv time D526B1D5.AB57C32A (06:21:41.669 AEST Sun Apr 28 2013) xmt time D526B1D5.AA99B108 (06:21:41.666 AEST Sun Apr 28 2013) filtdelay = 2.72 0.00 0.00 0.00 0.00 0.00 0.00 0.00 filtoffset = -2.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00 filterror = 0.02 16000.0 16000.0 16000.0 16000.0 16000.0 16000.0 16000.0
From the CCIE wireless LAB perspective there are WLC & Autonomous AP where you want to sync the time. For a WLC you can configure this via GUI or CLI. Here is the CLI method. In my network I have WLC3 (2106) connected to CAT4 (not shown in the diagram above)
(WLC3) >config time ntp auth Configures the NTP authentication interval Configures the Network Time Protocol Polling Interval. key-auth Configures the NTP authentication key. server Configures the Network Time Protocol Server (WLC3) >config time ntp key-auth ? add Choose add to Enter a NTP authentication key. delete Choose del to delete the NTP authentication key. (WLC3) >config time ntp key-auth add ? <key_index> Enter Key index between 1 . . 4294967295, Any Value more than this will be ceiled to 4294967295. (WLC3) >config time ntp key-auth add 1 ? md5 Only MD5 supported. (WLC3) >config time ntp key-auth add 1 md5 ? ascii Key format choose ascii type. hex Key format choose hex type. (WLC3) >config time ntp key-auth add 1 md5 ascii ? <key> Enter key, Maximum of 16 characters. (WLC3) >config time ntp key-auth add 1 md5 ascii mrn-cciew (WLC3) >config time ntp auth ? disable Choose Enable or Disable option enable Choose Enable or Disable option (WLC3) >config time ntp auth enable ? <server-index> Enter NTP server index. (WLC3) >config time ntp auth enable 1 <key-index> Enter Key index between 1 . . 4294967295, Any Value more than this will be ceiled to 4294967295. (WLC3) >config time ntp auth enable 1 1 Authentication Enabled (WLC3) >config time ntp server 1 10.10.10.3 (WLC3) >config time ntp interval ? <interval> Enter NTP polling interval, between 3600 and 604800 (in seconds). (WLC3) >config time ntp interval 3600
Remember to add WLC management IP to NTP ACL you created on CAT2. You can verify by looking at the ACL hit count incrementing.
CAT2(config)#access-list 10 permit 10.10.120.140 CAT2#sh access-lists 10 Standard IP access list 10 10 permit 10.10.10.2 (14 matches) 30 permit 10.10.10.4 (17 matches) 20 permit 10.10.20.1 (25 matches) 40 permit 10.10.120.140 (1 match)

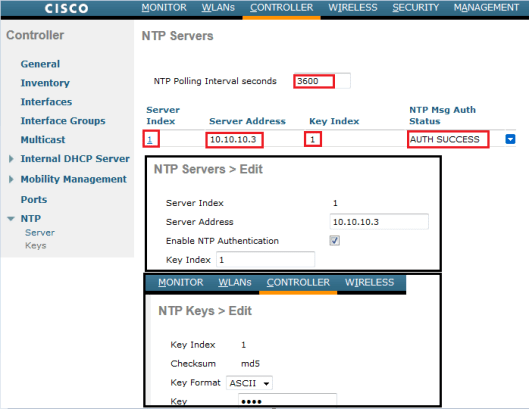

Here are the WLC GUI looks like once you configured this.
For the Autonomous AP you have to configure this as “sntp server <ntp-server IP>” command. Here is the NTP config on AAP1 (10.10.110.100). I do not think it will support for Authentication & I have sync it with CME instead of CAT2
AAP1(config)#sntp ? broadcast Configure SNTP broadcast services logging Enable SNTP message logging server Configure SNTP server source-interface Configure interface for source address AAP1(config)#sntp server 10.10.205.20 AAP1(config)#sntp source-interface BVI1 AAP1(config)#do sh sntp SNTP server Stratum Version Last Receive 10.10.205.20 2 1 00:00:20 Synced Source interface BVI1 is configured.
Before we finish there is one more setting associate with time known as time-zone. This setting is local to the device which you configure. For Routers, Switches or Autonomous AP command will be “clock timezone <name> < delta> ” . See below example which I have configured my devices to AEST (Aus Eeastern Standard Time) with +10 hr to UTC.
AAP1(config)#clock timezone AEST 10 ! CAT2(config)#clock timezone AEST 10
In WLC, you have to use “config time timezone {location|delta}” command in CLI. If you set the correct location it will automatically adjusted the delta. In my case location number would be 28 (which is AU- MEL, GMT+10)
(WLC3) >config time timezone location ?
<location_index> Enter the timezone location index.
1. (GMT-12:00) International Date Line West
2. (GMT-11:00) Samoa
3. (GMT-10:00) Hawaii
4. (GMT -9:00) Alaska
5. (GMT -8:00) Pacific Time (US and Canada)
6. (GMT -7:00) Mountain Time (US and Canada)
7. (GMT -6:00) Central Time (US and Canada)
8. (GMT -5:00) Eastern Time (US and Canada)
9. (GMT -4:00) Altantic Time (Canada)
10. (GMT -3:00) Buenos Aires (Agentina)
11. (GMT -2:00) Mid-Atlantic
12. (GMT -1:00) Azores
13. (GMT) London, Lisbon, Dublin, Edinburgh
14. (GMT +1:00) Amsterdam, Berlin, Rome, Vienna
15. (GMT +2:00) Jerusalem
16. (GMT +3:00) Baghdad
17. (GMT +4:00) Muscat, Abu Dhabi
18. (GMT +4:30) Kabul
19. (GMT +5:00) Karachi, Islamabad, Tashkent
20. (GMT +5:30) Colombo, Kolkata, Mumbai, New Delhi
21. (GMT +5:45) Katmandu
22. (GMT +6:00) Almaty, Novosibirsk
23. (GMT +6:30) Rangoon
24. (GMT +7:00) Saigon, Hanoi, Bangkok, Jakatar
25. (GMT +8:00) HongKong, Bejing, Chongquing
26. (GMT +9:00) Tokyo, Osaka, Sapporo
27. (GMT +9:30) Darwin
28. (GMT+10:00) Sydney, Melbourne, Canberra
29. (GMT+11:00) Magadan, Solomon Is., New Caledonia
30. (GMT+12:00) Kamchatka, Marshall Is., Fiji
31. (GMT+12:00) Auckland (New Zealand)
That’s all what you need for NTP configuration & it is really important to all of your devices in the CCIE lab synch properly. This is one of the configuration you have to do early in the lab exam.
