Work Group Bridges (WGB) are Autonomous APs configured as clients. These WGB APs are used to relay traffic from non-802.11 clients to wireless infrastructure. This is different to normal wireless bridge where wireless bridge is used for trunking multiple vlan across a wireless link (think of wireless trunk). On the other hand WGB is used to connect non-802.11 devices into wireless network.
WGB can connect to autonomous AP or Lightweight AP like any other client.In the following lab set up I have used Autonomous AP as Root (It can be LWAP as well)

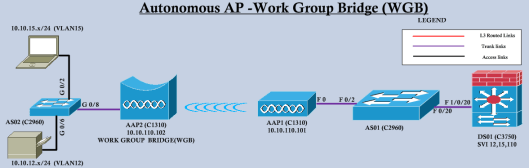

First scenario is WGB is connected to a dot1q capable switch where you want to have wired clients in different vlans. Vlan 110 would be the native vlan & therefore Fa0/2 of AS01 & G0/8 of AS02 are configured as trunk port with native vlan 110. In this lab I have configured 3 vlans (110,12,15) & related sub interfaces on root AP & WGB. Vlan 110 is configured as native VLAN & it is assigned to infrastructure SSID. Under Radio interface you have to configure “infrastructure-client” command in order to WGB to associate with infrastructure SSID. Also this will allow multicast/ broadcast packets to WGB are acknowledged by WGB.(make multicast/broadcast reliable). Here is the full configuration of Root AP.
hostname AAP1 ! dot11 ssid WGB vlan 110 authentication open infrastructure-ssid ! interface Dot11Radio0 ssid WGB station-role root infrastructure-client ! interface Dot11Radio0.12 encapsulation dot1Q 12 bridge-group 12 ! interface Dot11Radio0.15 encapsulation dot1Q 15 bridge-group 15 ! interface Dot11Radio0.110 encapsulation dot1Q 110 native bridge-group 1 ! interface FastEthernet0.12 encapsulation dot1Q 12 bridge-group 12 ! interface FastEthernet0.15 encapsulation dot1Q 15 bridge-group 15 ! interface FastEthernet0.110 encapsulation dot1Q 110 native bridge-group 1 ! interface BVI1 ip address 10.10.110.101 255.255.255.0 ! ip default-gateway 10.10.110.3
In the WGB, we have to specify the role under radio interface by using the command “station-role workgroup-bridge“. This makes this AP acting as special type of client to the root AP. Here is the complete configuration of WGB.
hostname AAP2 ! dot11 ssid WGB vlan 110 authentication open infrastructure-ssid ! interface Dot11Radio0 ssid WGB station-role workgroup-bridge ! interface Dot11Radio0.12 encapsulation dot1Q 12 bridge-group 12 ! interface Dot11Radio0.15 encapsulation dot1Q 15 bridge-group 15 ! interface Dot11Radio0.110 encapsulation dot1Q 110 native bridge-group 1 ! interface FastEthernet0.12 encapsulation dot1Q 12 bridge-group 12 ! interface FastEthernet0.15 encapsulation dot1Q 15 bridge-group 15 ! interface FastEthernet0.110 encapsulation dot1Q 110 native bridge-group 1 ! interface BVI1 ip address 10.10.110.102 255.255.255.0 ! ip default-gateway 10.10.110.3
You can verify the wired clients association to this WGB by issuing “show dot11 association” command. In my example two laptops connected to AS02 two switch ports which is configured for Vlan 12 & Vlan 15. They will obtain IP from DHCP server (sits behind DS01) & usually within 1-2 minutes. (Generally it is slow & allow enough time prior to come to conclusion it is not working). You can ping any IPs from these machines & that prove it has network connectivity to rest of the network.
AAP1#sh dot11 ass 802.11 Client Stations on Dot11Radio0: SSID [WGB] : MAC Address IP address Device Name Parent State 0019.30dd.9b74 10.10.110.102 WGB AAP2 self Assoc 001f.1618.dfec 10.10.15.54 WGB-client - 0019.30dd.9b74 Assoc 5c26.0a65.8f37 10.10.12.51 WGB-client - 0019.30dd.9b74 Assoc AAP2#sho dot11 ass 802.11 Client Stations on Dot11Radio0: SSID [WGB] : MAC Address IP address Device Name Parent State 001b.2a30.48b0 10.10.110.101 11g-bridge AAP1 - Assoc
Now we will look at next scenario where WGB is connected to non-trunking capable switch/hub.See the diagram below.
In this case you need to configure “workgroup-bridge client-vlan x” where all the devices connected to WGB via Hub will be on vlan x. In my example I will configure all ports in my 8 port switch (AS02) in to vlan 15.
When I connected my laptops into G0/2 & G0/6 they could not get the IP from DHCP server. why ?
When I checked spanning tree for vlan 15 on this 8 port switch I can see G0/8 in “Block” state. This is due to G0/8 receive dot1q frames from the autonomous AP & switch is intelligent enough to detect these & put the port into “Block” state. If you use a hub, it should not behave like this & straight away you should get IPs to your devices.
CAT4(config-if-range)#do sh span vlan 15 VLAN0015 Spanning tree enabled protocol ieee Root ID Priority 32783 Address 58bf.ea59.f800 This bridge is the root Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Bridge ID Priority 32783 (priority 32768 sys-id-ext 15) Address 58bf.ea59.f800 Hello Time 2 sec Max Age 20 sec Forward Delay 15 sec Aging Time 15 sec Interface Role Sts Cost Prio.Nbr Type ------------------- ---- --- --------- -------- -------------------------------- Gi0/2 Desg FWD 4 128.2 P2p Gi0/8 Desg BKN*19 128.8 P2p *TYPE_Inc
You can simply disable Spanning Tree on this vlan by issueing “ no spanning-tree vlan 15” command. Then immediately you would see two laptops will associate to workgroup bridge & get correct IP from DHCP server.
AAP1#sh dot11 ass 802.11 Client Stations on Dot11Radio0: SSID [WGB] : MAC Address IP address Device Name Parent State 0019.30dd.9b74 10.10.110.102 WGB AAP2 self Assoc 001f.1618.dfec 10.10.15.54 WGB-client - 0019.30dd.9b74 Assoc 5c26.0a65.8f37 10.10.15.55 WGB-client - 0019.30dd.9b74 Assoc
We will see how WGB connect to LWAP in next post on this topic.
Related Posts
1. Lightweight to Autonomous (vice versa) Conversion
2. Multiple SSID Config on Autonomous AP
3. Autonomous AP – Wireless Bridges
4. Autonomous AP – Repeater
mrn-cciew
Hi Rasika,
I have one question regarding the proper use of “infrastructure-ssid command”.
Well according to tests in my lab this command is needed only when you have the bridging scenario Root Bridge->Non Root Bridge and is used only on Non Root in order to force the Non Root to connect to Root via this ssid.
In Root-Bridge->WGB scenario it’s not mandatory to use the above command but only define the Root-Bridge as infrastructure client.
In the exam what is the impact in the score for additional config that may be useless?
Thanks.
Yes, this command is not MANDATORY.
But if you WGB is an infrastructure client then it is better to have infrastructure-SSID command on your root.
Below will explain WGB CLI commands bit more in detail.
http://wirelessccie.blogspot.com.au/2010/09/workgroup-bridge-wgb-cli-commands.html
In the exam they will not reduce mark for over-configuration. So you should be fine as long as no explicit restrictions.
HTH
Rasika
Dear nayarasi,
Thank you for the information.
I asking for :
1. Is this command [infrastructure client] is configured only on Root AP , not WGB ?
2. What if i configured this command on WGB, what will be it’s impact ? ( Note : i tested it on my WGB under int do1 but nothing happened)
3. For the exam will it be wrong if this command was under int do1 on WGB ?
4. Is the equivalent command to this command on WGB is [station-role workgroup-bridge multicast mode {infrastructure | client} ] ?
Hi,
1. Root AP
2. yes, no impact if you configure it on WGB
3. as long as it does not break anything you should get marks
4. no, that is for some multicast handling on WGB
HTH
Rasika
Thanks for sharing this .. as always pretty usefull …
Tks Andre
can i connect non cisco root and cisco ap
If work group bridge is in “universal mode” it can associate to a non-cisco root AP.
https://community.cisco.com/t5/other-wireless-mobility-subjects/configuring-universal-workgroup-bridge-with-aironet-1130-series/td-p/2694753
HTH
Rasika
