There are 15 different types of Data Frames defined in IEEE 802.11-2007 standard. Data frames with a value of 1 in the QoS subfield of the Subtype field (Bit7) are collectively referred to as QoS data frames. Each of these data subtypes contains QoS in their names, and this frame format is distinguished by the presence of a QoS Control field in the MAC header.

A QoS STA always uses QoS data frames for data transmissions to other QoS STAs. A QoS STA uses frames with the QoS subfield of the Subtype field set to 0 for data transmissions to non-QoS STAs. A non-QoS STA always uses frames with the QoS subfield of the Subtype field set to 0 (Bit7) for data transmissions to other STAs.

All STAs use frames with the QoS subfield of the Subtype field set to 0 (Bit7) for broadcast data frames unless a transmitting STA knows that all STAs in a BSS have QoS capability, in which case the transmitting STAs use QoS data frames.

All STAs use frames with the QoS subfield of the Subtype field set to 0 for group addressed data frames (ie multicast) unless it is known to the transmitter that all STAs in the BSS that are members of the multicast group have QoS capability, in which case STAs use QoS data frames.

Below table summarize all Data Frame types. Each bit of the Subtype field indicate different type of Data frames (eg Bit7=1 QoS , Bit6=1 Null frame, Bit5=1 CF-Poll  & Bit4=1 CF-ACK)

In wireshark you can filter all Data frame using below filter (Type =2)

wlan.fc.type == 2

Data:
In Non-QoS  Data frames there is no QoS control field present in the MAC header. Below shows a simple data frame which you can filter using below ( Type 2 , subtype 0). In this frame To DS & From DS field set to 1 & therefore used 4 addresses field in MAC header (Typically all other scenarios, 3 addresses field use in MAC header)

wlan.fc.type_subtype == 0x0020

Data + CF-ACK :

wlan.fc.type_subtype == 0x0021

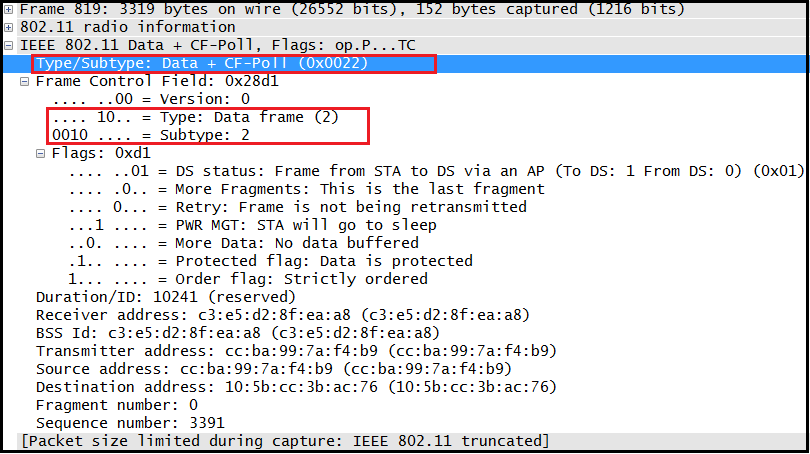

Data + CF-Poll :

wlan.fc.type_subtype == 0x0022

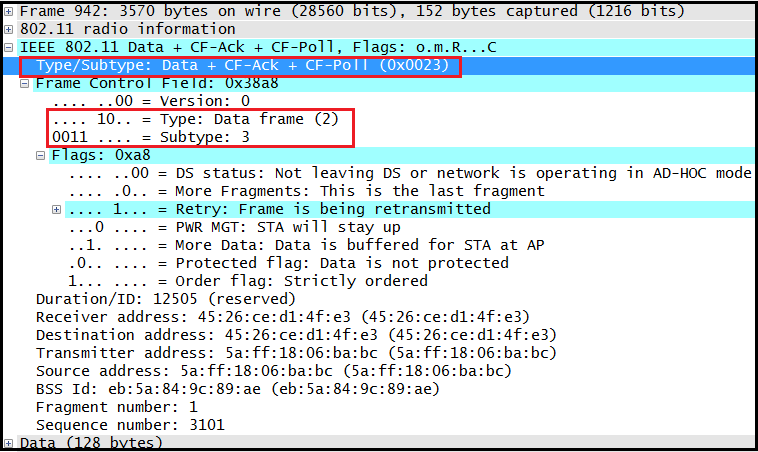

Data + CF-Ack + CF-Poll :

wlan.fc.type_subtype == 0x0023

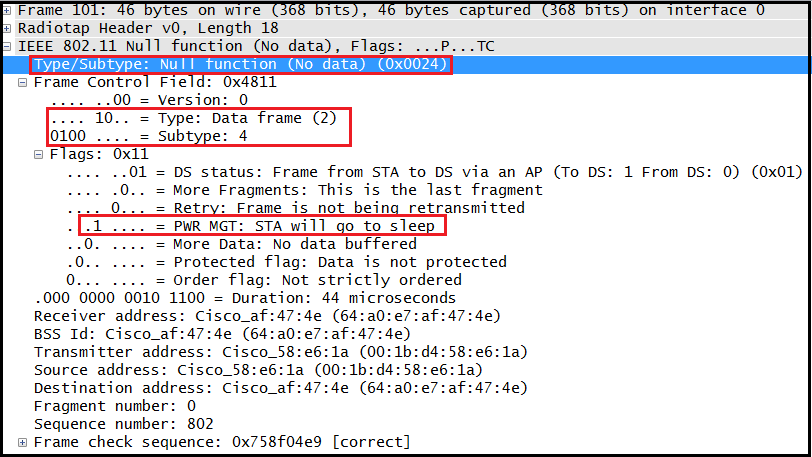

Null Data :
Here is a Null (no data frame). In this case this frame is used to indicate client is going to Power Save mode sending this to AP by the client ( Note that Power Mgmt bit set to 1 in Frame Control)

wlan.fc.type_subtype == 0x0024

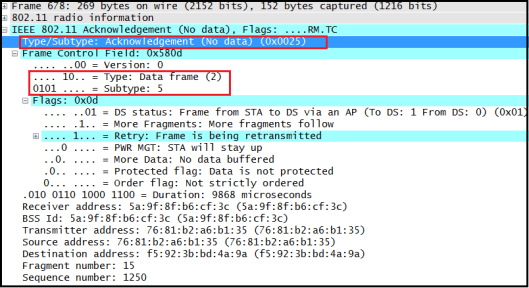

CF-ACK (no data):

wlan.fc.type_subtype == 0x0025

CF-Poll (no data):

wlan.fc.type_subtype == 0x0026

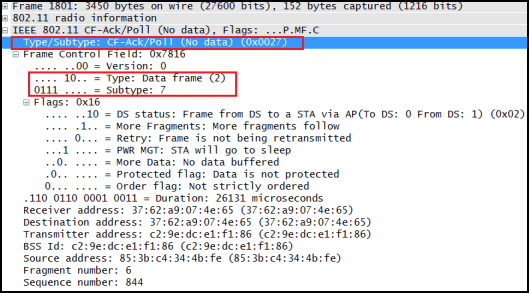

CF-ACK + CF-Poll (no data) :

wlan.fc.type_subtype == 0x0027

QoS Data:
Here is a QoS Data frame Where subtype is 8. Note that QoS control field in the MAC header.

wlan.fc.type_subtype == 0x0028

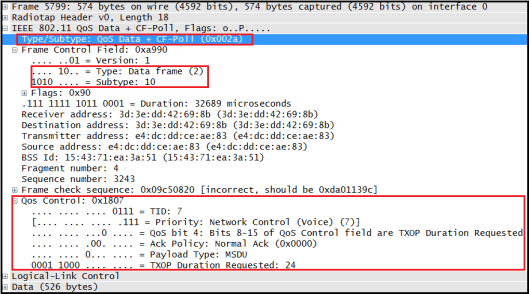

QoS Data + CF-Poll:

wlan.fc.type_subtype == 0x002a

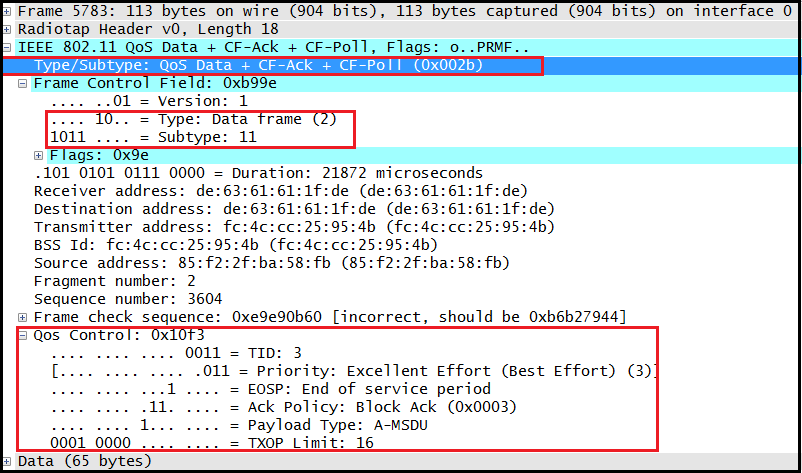

QoS Data + CF-ACK + CF-Poll:

wlan.fc.type_subtype == 0x002b

QoS Null Data :

wlan.fc.type_subtype == 0x002c

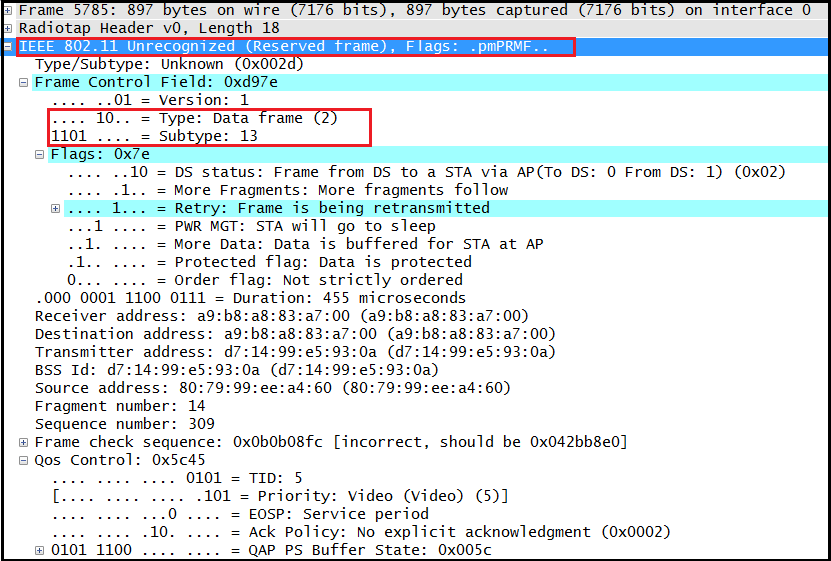

Rerved Data Frame:

wlan.fc.type_subtype == 0x002d

QoS Data + CF-Poll (no data):

wlan.fc.type_subtype == 0x002e

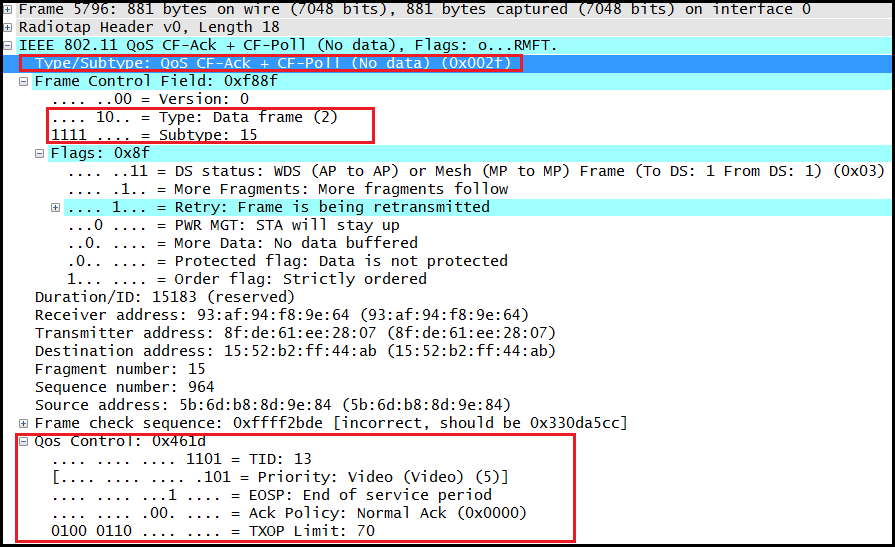

QoS CF-ACK + CF-Poll (no data):

wlan.fc.type_subtype == 0x002f
