Is it possible to have wireless & wired client behind a WGB ? This is a query posted in CSC forum given below.

https://supportforums.cisco.com/message/4128630#4128630

Even I think this is not possible, but  when I tried it as shown below proven my assumption was wrong.

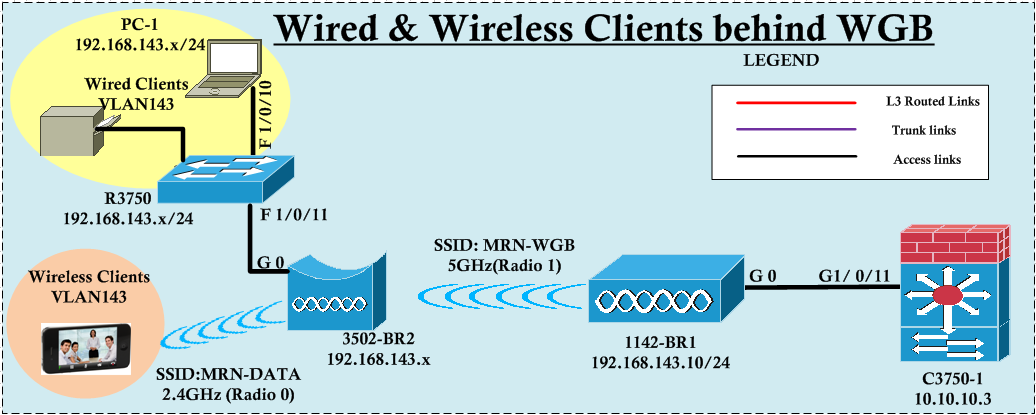

So here is the testing topology where WGB (3502-BR2) connecting to root AP using 5Ghz band. Wired clients connecting to R3750 switch connected to G0 of WGB where as Wireless clients are connecting to 2.4GHz radio of WGB (MRN-DATA SSID).

Here is the config of the C3750 where SVI defined for vlan 143.

hostname C3750-1
!
ip dhcp excluded-address 192.168.143.1 192.168.143.50
ip dhcp pool VLAN143
 network 192.168.143.0 255.255.255.0
 default-router 192.168.143.1
 dns-server 192.231.203.132 192.231.203.3
 domain-name mrn.com
!
interface Vlan143
 ip address 192.168.143.1 255.255.255.0
!
interface GigabitEthernet1/0/11
 description 1142-BR1
 switchport access vlan 143
 switchport mode access
end

Here is the 1142-BR1 config where MRN-WGB ssid defined to associate WGB.

hostname 1140-BR1
!
dot11 ssid MRN-WGB
   authentication open
   authentication key-management wpa version 2
   wpa-psk ascii Cisco123
!
interface Dot11Radio1
 encryption mode ciphers aes-ccm
 ssid MRN-WGB
 station-role root
 infrastructure-client
 bridge-group 1
!
interface BVI1
 ip address 192.168.143.10 255.255.255.0
 !
ip default-gateway 192.168.143.1

Here is the WGB (3502-BR2) configuration  where I have defined two SSID, One same  name as Root AP to associate to it on 5GHz & the MRN-DATA for users association in 2.4GHz.

hostname 3502-BR2
!
dot11 ssid MRN-DATA
   authentication open
   authentication key-management wpa version 2
   guest-mode
   wpa-psk ascii Cisco12345
!
dot11 ssid MRN-WGB
   authentication open
   authentication key-management wpa version 2
   wpa-psk ascii Cisco123
!
interface Dot11Radio0
 encryption mode ciphers aes-ccm
 ssid MRN-DATA
 station-role root
 bridge-group 1
!
interface Dot11Radio1
 encryption mode ciphers aes-ccm
 ssid MRN-WGB
 station-role workgroup-bridge
 bridge-group 1
!
interface BVI1
 ip address dhcp

Here is the R3750 switch configuration.

hostname R3750
!
interface FastEthernet1/0/10
 destcription PC1
 switchport access vlan 143
 switchport mode access
 spanning-tree portfast
!
interface FastEthernet1/0/11
 description 3502-BR2
 switchport access vlan 143
 switchport mode access
 spanning-tree portfast

Once you do this configuration & connect wired PC to the R3750 switch in vlan 143 switchport you should see clients are getting DHCP from C3750. Also you should see MRN-DATA wireless SSID is visible & you can connect client using the pre-shared key defined.

Here is client association details on WGB where my iPhone connected to MRN-DATA SSID. You can see WGB itself taken an IP from DHCP on vlan 143.

3502-BR2#sh ip int bri | ex un
Interface                  IP-Address      OK? Method Status                Protocol
BVI1                       192.168.143.54  YES DHCP   up                    up
!
3502-BR2#sho dot11 associations
802.11 Client Stations on Dot11Radio1:
SSID [MRN-WGB] :
MAC Address    IP address      Device        Name            Parent         State
a40c.c31a.ee60 192.168.143.10  ap1140-Parent 1140-BR1        -              Assoc

802.11 Client Stations on Dot11Radio0:
SSID [MRN-DATA] :
MAC Address    IP address      Device        Name            Parent         State
04f7.e4ea.5b66 192.168.143.56  unknown       -               self           Assoc

On Root AP (1142-BR1) you can see all clients behind WGB

1140-BR1#sh dot11 associations
802.11 Client Stations on Dot11Radio1:
SSID [MRN-WGB] :
MAC Address    IP address      Device        Name            Parent         State
001f.1618.dfec 192.168.143.57  WGB-client    -               44d3.caaf.4343 Assoc
04f7.e4ea.5b66 192.168.143.56  WGB-client    -               44d3.caaf.4343 Assoc
44d3.caaf.4343 192.168.143.54  WGB           3502-BR2        self           Assoc

Here is the C3750 client information on vlan 143.

C3750-1#sh arp | in Vlan143
Internet  192.168.143.1           -   0000.0c07.ac0a  ARPA   Vlan143 <- Gateway
Internet  192.168.143.10         62   5475.d0f5.2ee7  ARPA   Vlan143 <- 1142-BR1
Internet  192.168.143.54         60   44d3.caaf.4343  ARPA   Vlan143 <- 3502-BVI1
Internet  192.168.143.56          0   04f7.e4ea.5b66  ARPA   Vlan143 <- iPhone5
Internet  192.168.143.57          3   001f.1618.dfec  ARPA   Vlan143 <- Wired PC
!
C3750-1#ping 192.168.143.57
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.143.57, timeout is 2 seconds:
!!!!!

You can verify wired device connectivity on R3750 like below.

R3750#sh mac address-table interface f1/0/11
          Mac Address Table
-------------------------------------------
Vlan    Mac Address       Type        Ports
----    -----------       --------    -----
 143    0000.0c07.ac0a    DYNAMIC     Fa1/0/11
 143    001f.6d21.37cc    DYNAMIC     Fa1/0/11
 143    04f7.e4ea.5b66    DYNAMIC     Fa1/0/11
 143    44d3.caaf.4343    DYNAMIC     Fa1/0/11
Total Mac Addresses for this criterion: 4

R3750#sh mac address-table interface f1/0/10
          Mac Address Table
-------------------------------------------
Vlan    Mac Address       Type        Ports
----    -----------       --------    -----
 143    001f.1618.dfec    DYNAMIC     Fa1/0/10 <-Wired PC

I have not tried configuring multiple vlan & see whether it works. You can try it by yourself & see.
