Normally Cisco Office Extend AP (OEAP600) allow user to extend their office network into any public place (like home, event venue, etc) without much trouble.This AP has 4 ports (excluding WAN port) where one (Yellow port) of them labeled as Remote-LAN that can be used to extend one of your wired LAN.

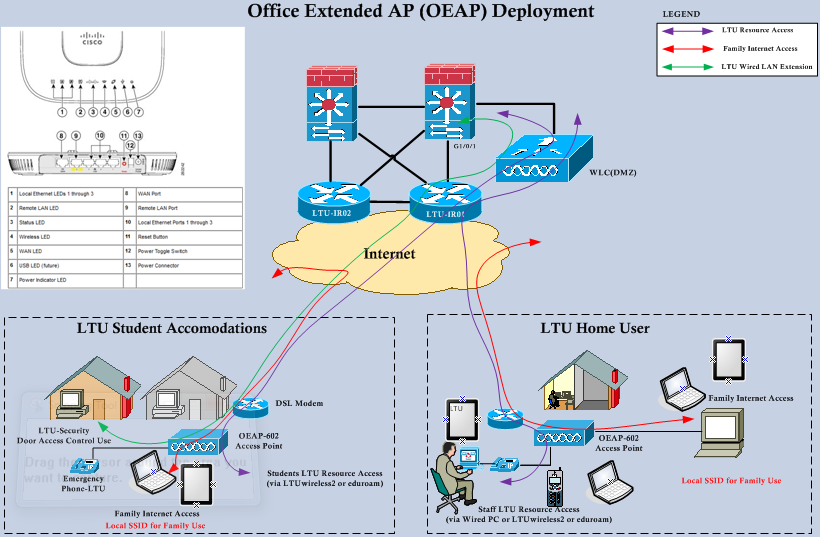

In my office environment below is the typical use-case for OEAP solution.
One type of users are normal staff user where they require corporate WLAN to be extended to their home. In certain cases (VIP) extending a wired LAN for their VoIP phone & if required wired PC connect to it. This is pretty much out of the box OEAP can do.
In the next user group is students who are given accommodation in small units scatter around the state. Mainly those are in regional areas & DSL would be the preferred solution for internet. Other than typical office extend user requirement this bring additional requirement. Our Security group required extend their Door Access systems wired VLAN to these remote units.
That’s where you require to configure Multiple Remote LANs in OEAP. Will look at how we can do this in this post. Keep in mind screenshot below is based on WLC 7.4 software code (you may look this differently based on the WLC software code).

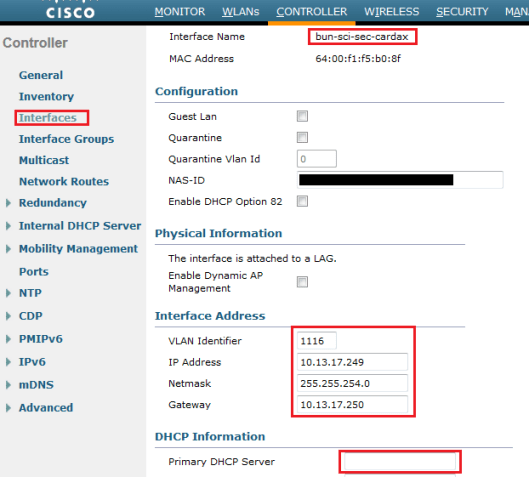

First you have to create dynamic interfaces on WLC related to the wired subnet you need to extend. I have shown one of my interface created for security Door Access system. In here I have not selected DHCP option as IP allocated statically. But in the voice subnet I have tick that option (not shown a screenshot for that)

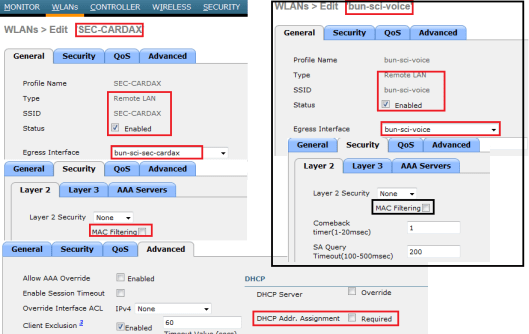

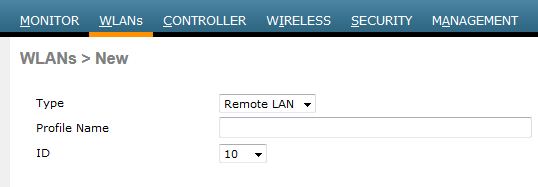

Once you create the interfaces you can define the required WLAN (as Remote LAN type) in order to extend wired LAN( see below for steps)
Here is the tricky part. You have to enable “Dual RLAN ports feature” using WLC CLI. In OEAP-600 series APs using the Dual RLAN Ports feature, which allows OEAP-600 Ethernet port 3 to operate as a remote LAN. The configuration is only allowed through the CLI, and here is an example:
config network oeap-600 dual-rlan-ports enable|disable
In the event that this feature is not configured, the single port 4 remote-lan continues to function. Each port uses a unique remote-lan for each port. The remote-lan mapping is different, which depends on whether the default-group or AP Groups is used.
Default-group
If the default-group is used, a single remote LAN with an even remote-lan ID is mapped to port 4. For instance, the remote-lan with remote-lan-id 2 is mapped to port 4 (on the OEAP-600). The remote-lan with an odd numbered remote-lan ID is mapped to port 3 (on the OEAP-600).
As an example, take these two remote-lans:
(Cisco Controller) >show remote-lan summary Number of Remote LANS............................ 2 RLAN ID RLAN Profile Name Status Interface Name ------- ------------------------------------- -------- -------------------- 2 rlan2 Enabled management 3 rlan3 Enabled management
rlan2 has an even numbered remote-lan ID, 2, and as such maps to port 4. rlan3 has odd remote-lan ID 3, and so maps to port 3.
AP Groups
If you use an AP group, the mapping to the OEAP-600 ports is determined by the AP-Group ordering. In order to use an AP group, you must first delete all remote-lans and WLANs from the AP-group and leave it empty. Then add the two remote-lans to the AP group. First add the port 3 AP remote-LAN first, then add port 4 remote group, and finally add any WLANs. Here is my AP Group for this OEAP.
A remote-lan in the first position in the list maps to port 3, and second in the list maps to port 4, as in this example:
(BUN-PW00-WC01) >show remote-lan summary Number of Remote LANS............................ 2 RLAN ID RLAN Profile Name Status Interface Name ------- ------------------------------------- -------- -------------------- 8 SEC-CARDAX Enabled bun-sci-sec-cardax 9 bun-sci-voice Enabled bun-sci-voice
You can verify the details by using “show remote-lan <rlan-id>” command. Here is output in my case.
(BUN-PW00-WC01) >show remote-lan 8 Remote LAN Identifier............................ 8 Profile Name..................................... SEC-CARDAX Status........................................... Enabled MAC Filtering.................................... Disabled AAA Policy Override.............................. Disabled Maximum number of Associated Clients............. 0 Number of Active Clients......................... 0 Exclusionlist Timeout............................ 60 seconds Session Timeout.................................. 86400 seconds User Idle Timeout................................ 300 seconds User Idle Threshold.............................. 0 Bytes NAS-identifier................................... BUN-PW00-WC01 Webauth DHCP exclusion........................... Disabled Interface........................................ bun-sci-sec-cardax Remote LAN ACL................................... unconfigured DHCP Server...................................... Default DHCP Address Assignment Required................. Disabled PMIPv6 Mobility Type............................. none Radius Servers Authentication................................ Global Servers Accounting.................................... Global Servers Interim Update............................. Disabled Dynamic Interface............................. Disabled Dynamic Interface Priority.................... wlan Local EAP Authentication......................... Disabled Security 802.1X........................................ Disabled Web Based Authentication...................... Disabled Web-Passthrough............................... Disabled AVC Visibilty.................................... Enabled AVC Profile Name................................. LTU-AVC-POLICY Flow Monitor Name................................ Scrutinizer 802.11u........................................ Disabled MSAP Services.................................. Disabled (BUN-PW00-WC01) >show remote-lan 9 Remote LAN Identifier............................ 9 Profile Name..................................... bun-sci-voice Status........................................... Enabled MAC Filtering.................................... Disabled AAA Policy Override.............................. Disabled Maximum number of Associated Clients............. 0 Number of Active Clients......................... 0 Exclusionlist Timeout............................ 60 seconds Session Timeout.................................. 86400 seconds User Idle Timeout................................ 300 seconds User Idle Threshold.............................. 0 Bytes NAS-identifier................................... BUN-PW00-WC01 Webauth DHCP exclusion........................... Disabled Interface........................................ bun-sci-voice Remote LAN ACL................................... unconfigured DHCP Server...................................... Default DHCP Address Assignment Required................. Enabled PMIPv6 Mobility Type............................. none Radius Servers Authentication................................ Global Servers Accounting.................................... Global Servers Interim Update............................. Disabled Dynamic Interface............................. Disabled Dynamic Interface Priority.................... wlan Local EAP Authentication......................... Disabled Security 802.1X........................................ Disabled Web Based Authentication...................... Disabled Web-Passthrough............................... Disabled AVC Visibilty.................................... Enabled AVC Profile Name................................. LTU-AVC-POLICY Flow Monitor Name................................ Scrutinizer 802.11u........................................ Disabled MSAP Services.................................. Disabled
Finally you can verify this connecting to Port3 & Port 4 of your OEAP. Once you conneted to Port3, Which maps to first remote-lan you added to your AP Group (in my case SEC-CARDAX) get connectivity on that. I have used static IP as I do not want DHCP on this.

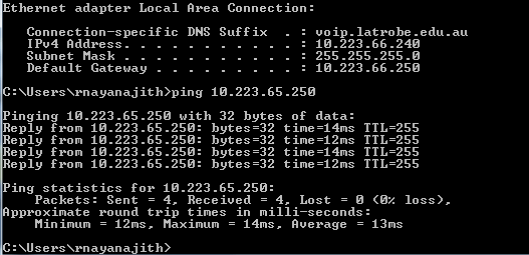

Once you connect to Port4 which maps to “bun-sci-voice” DHCP subnet I should get an IP via DHCP & should get the connectivity to rest of the network.
That’s how you can create multiple Remote LAN on your OEAP. You can go through this configuration guide for more detail.
Aironet 600 Series OfficeExtend Access Point Configuration Guide
Also following post may help you as well
OEAP 602 Remote LAN 802.1x (Port 4) with Wired IP Phone and Laptop behind the IP Phone
