In this post we will see how to configure EAP-TLS on a wireless controller.It is assumed that you have a PC which has already installed certificates(User Certifcate & Root CA Certificate). You can learn how to do this by following youtube video from Jerome.(It is one of 7 part series talking all about EAP TLS in clients, WLC, ACS & you should not miss these)

EAP-TLC configuration on wireless client

As you aware for EAP-TLS to work, WLC should have two certificates install on it.

1. Device Certificate issue to WLC
2. Root Certificate of a CA

Since WLC cannot generate CSR (Certificate Signing Request) by himself, a 3rd party software (Called OpenSSL) has to use to do this. Again finding out a correct version of OpenSSL that works well for this a challenge itself. After few trial & errors & reading few forum discussions I found OpenSSL 0_9_8y version works well with my WLC. You can download it from this link.

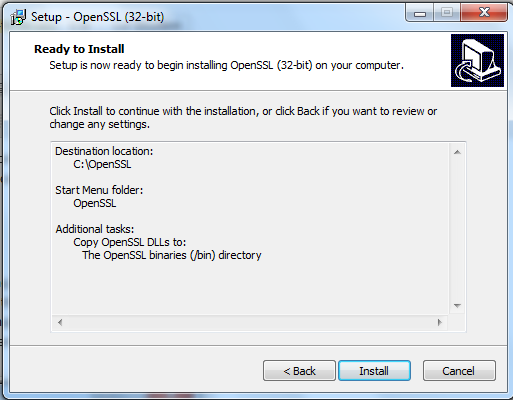

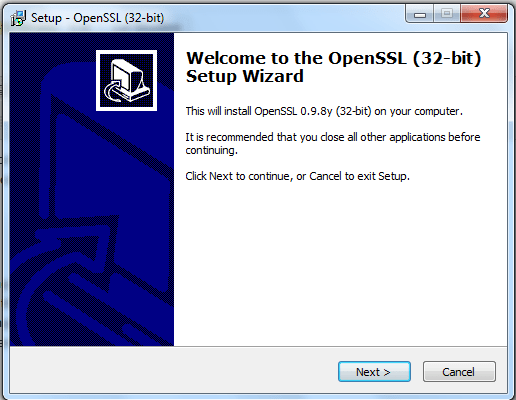

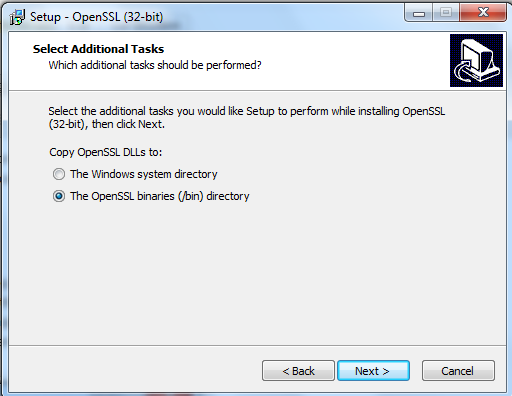

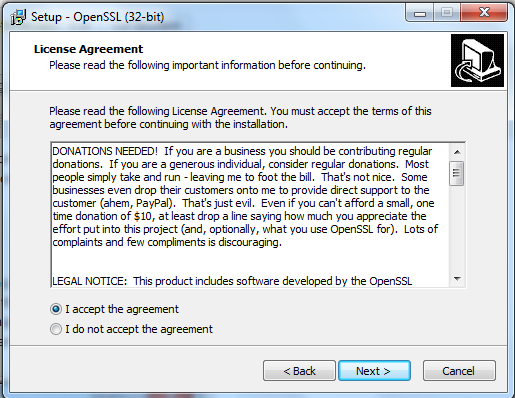

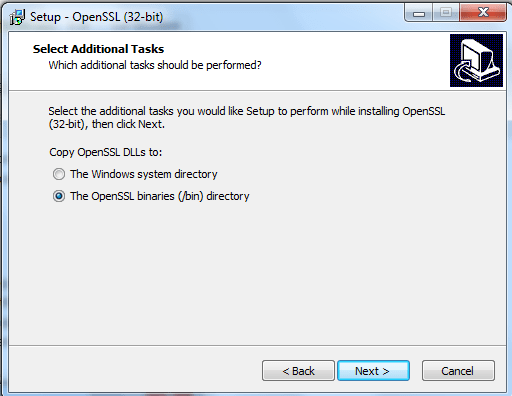

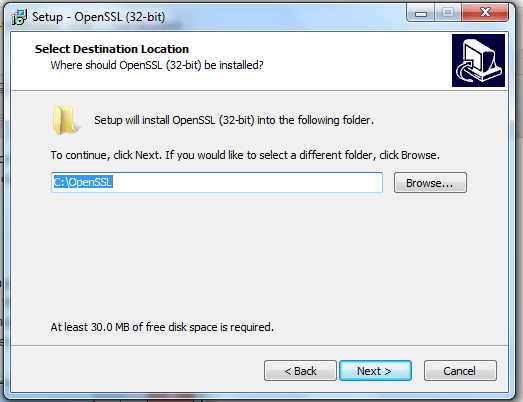

Here is the installation steps I have followed to get this working.

Once installation completed you can open a Command prompt (Run as Administrator) & run this OpenSSL application. Cisco document (Doc ID#75584) describe the below process with respect to CSR for Authentication of a WLC.

C:\Windows\system32>cd..
C:\Windows>cd..
C:\>cd /OpenSSL/bin
C:\OpenSSL\bin>openssl
OpenSSL>

OpenSSL> req -new -newkey rsa:1024 -nodes -keyout wlc1key.pem -out wlc1req.pem
Loading 'screen' into random state - done
Generating a 1024 bit RSA private key
...............................................................................
+++++
..............++++++
writing new private key to 'wlc1key.pem'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:
State or Province Name (full name) [Some-State]:VIC
Locality Name (eg, city) []:MEL
Organization Name (eg, company) [Internet Widgits Pty Ltd]:
Organizational Unit Name (eg, section) []:
Common Name (e.g. server FQDN or YOUR name) []:WLC1.mrn.com
Email Address []:mrncciew@gmail.com
Please enter the following 'extra' attributes to be sent with your certificate request
A challenge password []:cisco123
An optional company name []:
OpenSSL>

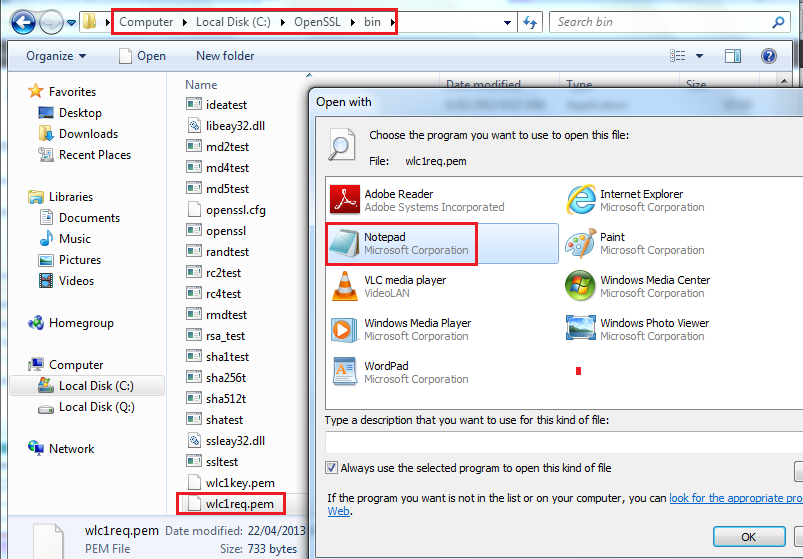

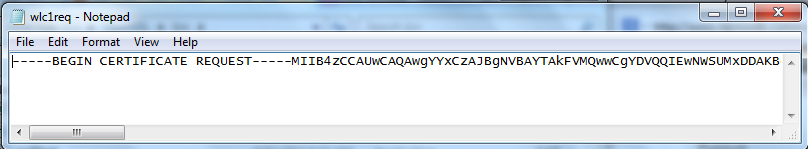

I have given my WLC name as Common Name. If you are doing this for Web Authentication you have to give DNS name for WLC virtual IP. This will create two files in OpenSSL bin folder with named “wlc1key.pem” & “wlc1req.pem”. You have to open “wlc1req.pem” on to notepad & use that to make CSR via your Certifcate Authority.

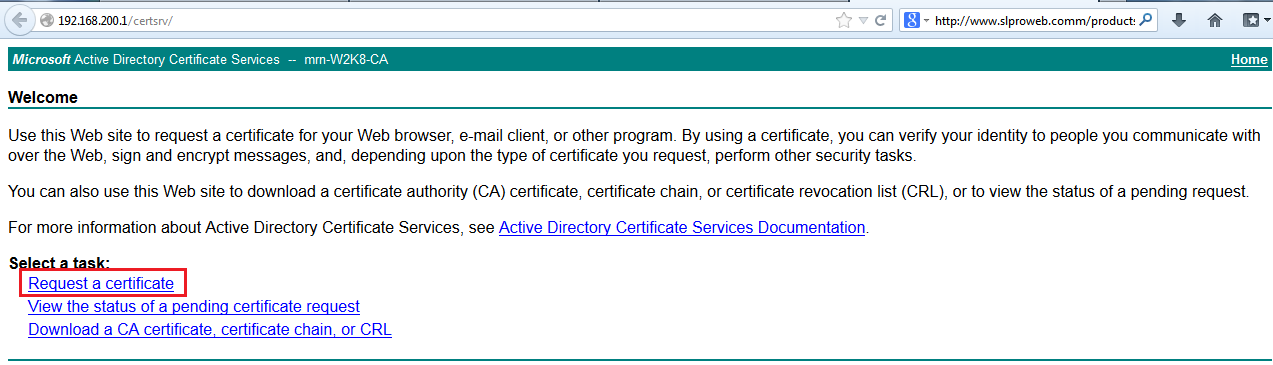

I have use Microsoft PKI as my CA installed on a windows 2008 server. You have to use Administrator account of that server to do this & URL for accessing it is “192.168.200.1/certsrv” where 192.168.200.1 is server IP. You will see a page like this.

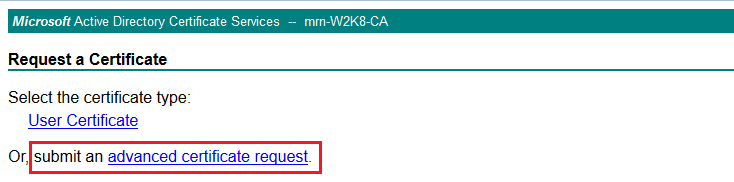

Then You have to click on submit an Advanced Certificate Request as shown in the below.

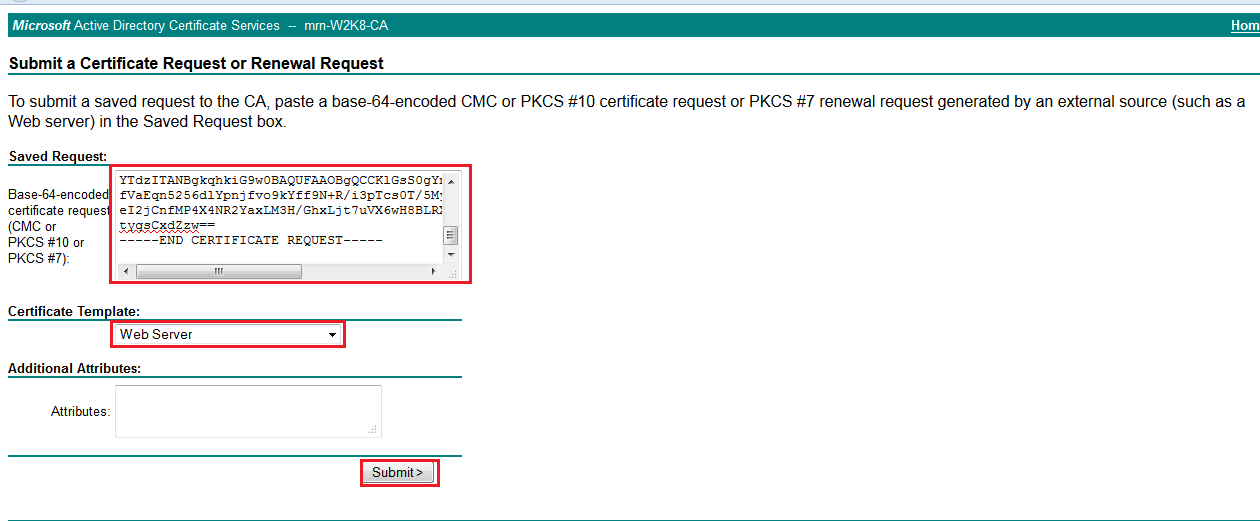

Then you need to paste notepad output of “wlc1req.pem”& select the template type as “Web Server” & hit the submit button as shown below.

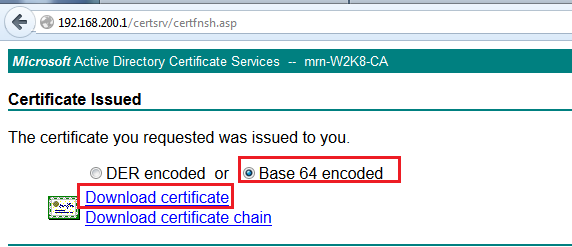

Then you can download the file. Ensure you selected “Base 64 encoded” option. I have named it as “wlc1ca.cer” & put it in the same bin folder where “wlc1key.pem” in.

Now by using the following Open SSL commands you can merge these wlc1key file & wlc1ca file. Also you have to make the final file as .pem prior to upload it onto WLC. Note that we have given password “mrncciew” & you need to configure this on WLC when downloading this onto WLC.

OpenSSL> pkcs12 -export -in wlc1ca.cer -inkey wlc1key.pem -out wlc1ca.p12 -clcerts -passin pass:mrncciew -passout pass:mrncciew
Loading 'screen' into random state - done
OpenSSL> pkcs12 -in wlc1ca.p12 -out wlc1ca.pem -passin pass:mrncciew -passout pass:mrncciew
MAC verified OK
OpenSSL>

Then you can download this file “wlc1ca.pem” file onto WLC.

(WLC1) >transfer download datatype eapdevcert
(WLC1) >transfer download path .
(WLC1) >transfer download filename wlc1ca.pem
(WLC1) >transfer download certpassword mrncciew
Setting password to <mrncciew>
(WLC1) >transfer download serverip 192.168.178.52
(WLC1) >transfer download start

Mode............................................. TFTP
Data Type........................................ Vendor Dev Cert
TFTP Server IP................................... 192.168.178.52
TFTP Packet Timeout.............................. 6
TFTP Max Retries................................. 10
TFTP Path........................................ ./
TFTP Filename.................................... wlc1ca.pem

This may take some time.
Are you sure you want to start? (y/N) y
TFTP EAP Dev cert transfer starting.
Certificate installed.
  Reboot the switch to use new certificate.

(WLC1) >reset system

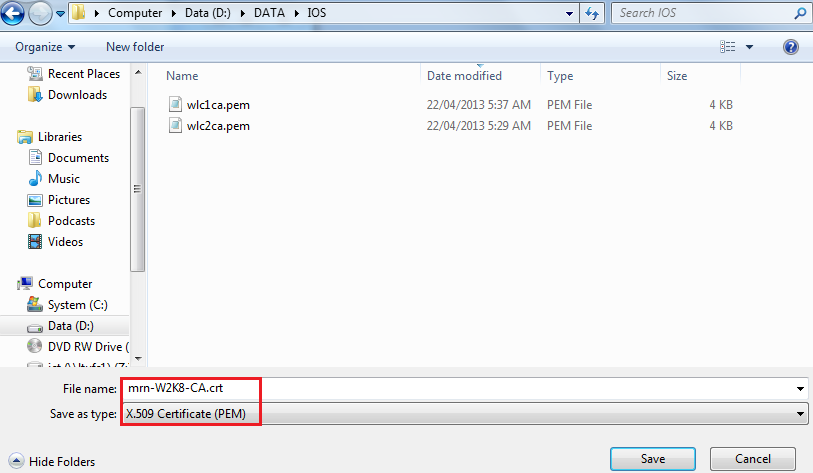

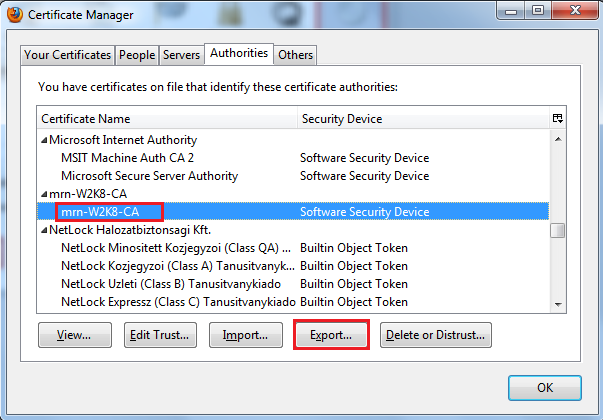

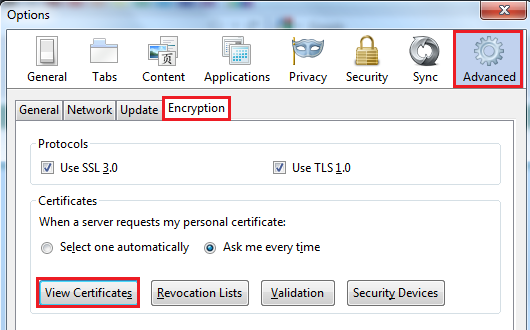

Now you need to install Root CA certificate for WLC. Since you have already installed Root CA on your client you can export by using firefox onto your TFTP folder. Then you can download this to your WLC. see below firefox screen captures how to do this.

Now you can download this Root CA to your controller as follows. You can use WLC GUI as well.

(WLC1) >transfer download mode tftp
(WLC1) >transfer download filename mrn-W2K8-CA.pem
(WLC1) >transfer download datatype eapcacert
(WLC1) >transfer download path .
(WLC1) >transfer download serverip 192.168.178.52
(WLC1) >transfer download start

Mode............................................. TFTP
Data Type........................................ Vendor CA Cert
TFTP Server IP................................... 192.168.178.52
TFTP Packet Timeout.............................. 6
TFTP Max Retries................................. 10
TFTP Path........................................ ./
TFTP Filename.................................... mrn-W2K8-CA.pem

This may take some time.
Are you sure you want to start? (y/N) y
TFTP EAP CA cert transfer starting.
Certificate installed.
  Reboot the switch to use new certificate.

(WLC1) >reset system

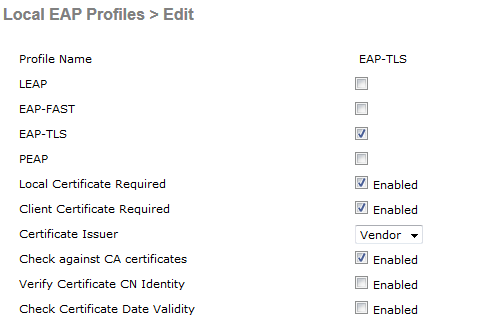

We Will configure a SSID with authentication via WLC local EAP. Here is the Local EAP Profile settings. Note that Certificate issuer select as “Vendor”.

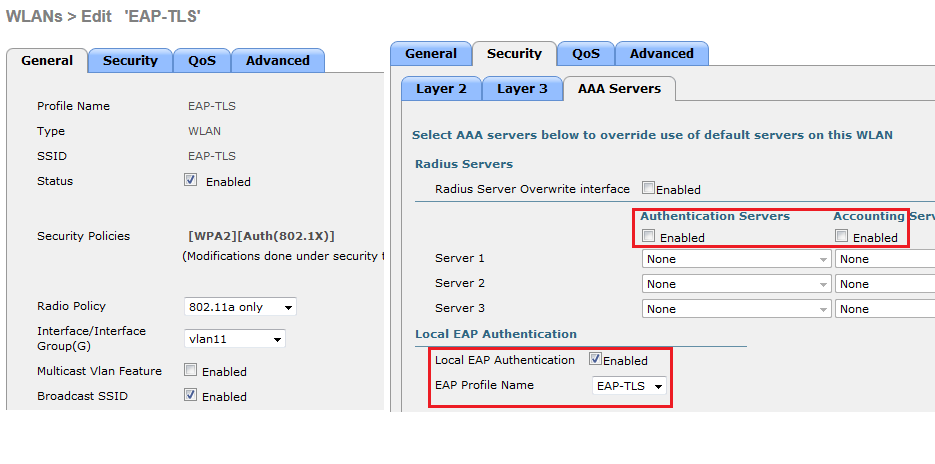

Here is the WLAN Settings

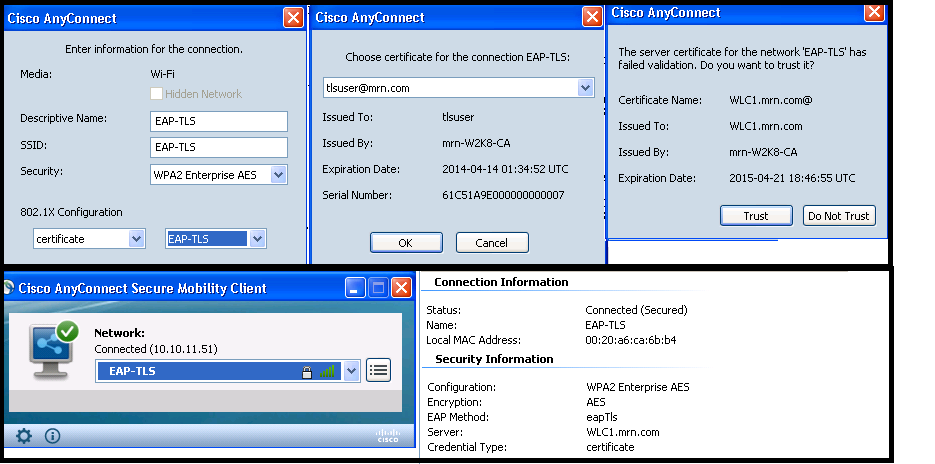

Now it is ready to test client. Here is the successful user Authentication using Local EAP profile configured for EAP-TLS

These two video from Jerome explain how to configure this & I referred that to make this post.
1. EAP-TLS on a WLC – Part 1
2. EAP-TLS on a WLC – Part 2

In a future post we will see how to configure this on ACS 5.2.
