When 802.11 authentication (not the RSN-WPA/WPA2 authentication) completes, a STA move to Association phase to the BSS. The purpose of this exchange is to join the cell & obtain an Association Identifier (AID). Below shows a typical client association where you can see Association Request & Association Response followed by 802.11 Authentication frames (request & response)

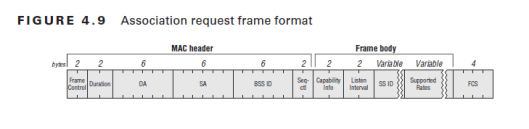

Association Request frame is having following frame format (CWAP Study Guide- Page 136)
The Listen Interval field is used to indicate to the AP how often a STA in power save mode wakes to listen to Beacon management frames. It is expressed in units of beacon interval. The value 0 might be used by a STA that never enters power save mode. An AP may use the Listen Interval information in determining the lifetime of frames that it buffers for a STA.

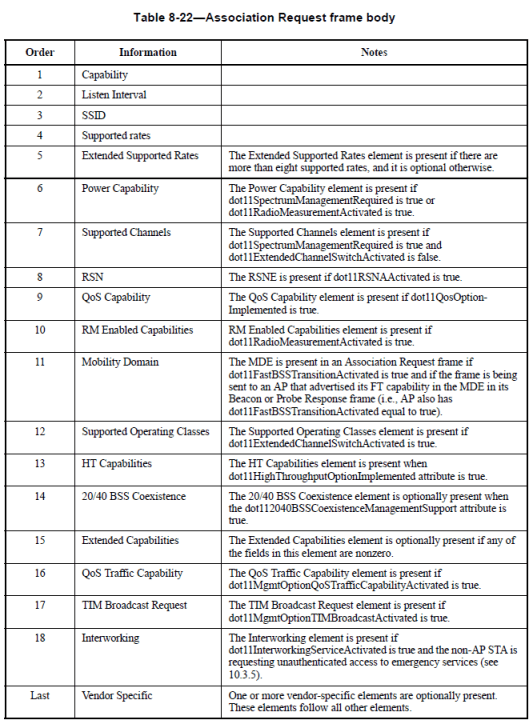

Below table summarize the information contain in a Association Request frame. (source IEEE 802.11-2012)

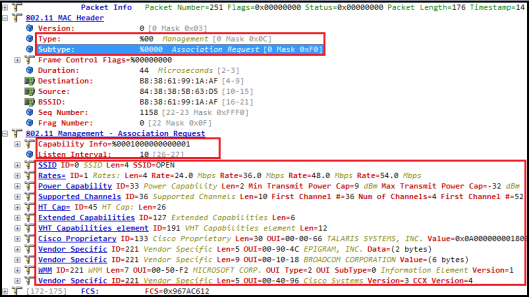

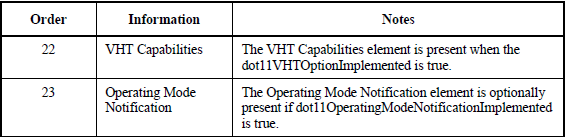

In 802.11-2013 (802.11ac) amendment below two additional fields added to above list.Here is the Association Request frame capture. Note that its type is “management” or value 0 with subtype value of 0 (Association Request). Listen Interval listed as 10. As you can see it listed the SSID trying to associate, supported data rate, Power capability, Supported Channels, HT & VHT capabilities.

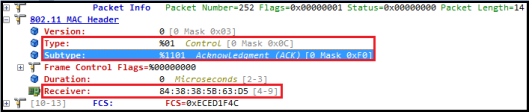

AP send an ACK for the Association Request frame sent by STA

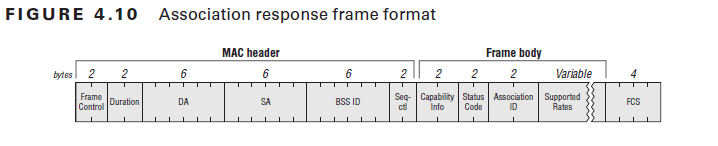

After acknowledging reception of the Association Request frame, the AP examine each field of the request & verify they all match its own 802.11 parameters. If there is a mismatch, AP decides whether this difference is a blocking factor (to the association).If the differences is not blocking, the AP take note of those differences & grant access to the cell, indicating own parameters in the Association Response frame. If the difference is blocking AP reject the association (status code =1). Here is the frame format of Association Response frame. (page 139- CWAP Study Guide)

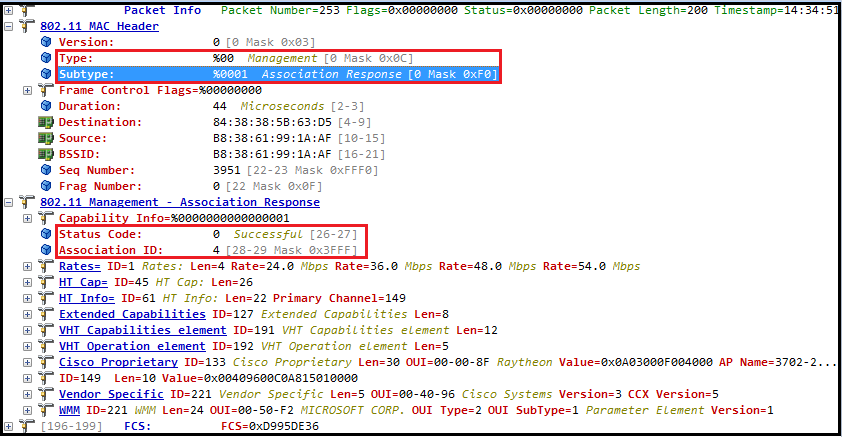

Here is the Association Response capture in the given frame exchange. Note that status code 0 (successful) & AID of 4 allocated for this client.

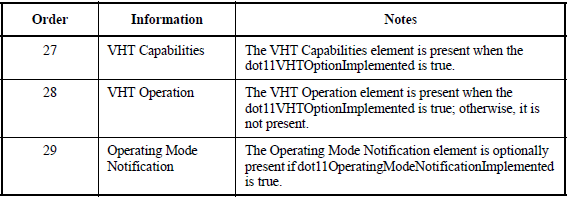

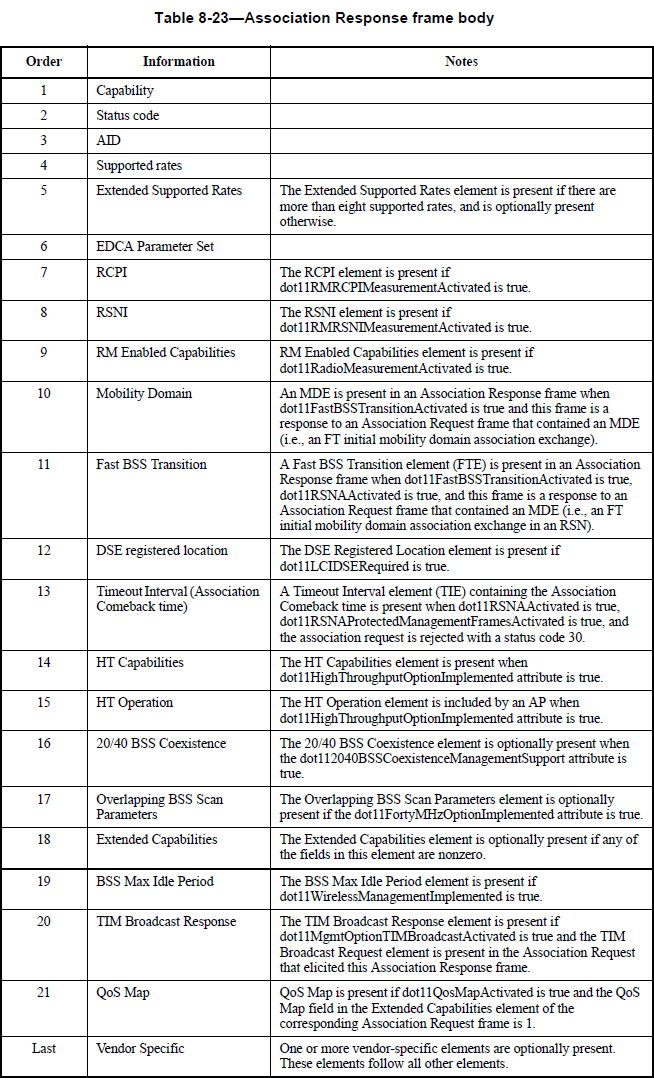

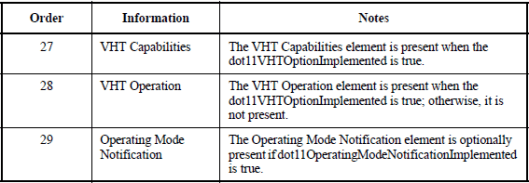

This Association Response will ACK by the STA.Here is the information contain in Association Response frame (source IEEE 802.11-2012).802.11ac amendment added following field onto Association Response frame.
1. CWAP Official Study Guide – Chapter 4
2. IEEE 802.11-2012
