In this post we will see how client information can be found in Converged Access platforms (5760/3850/3650). Normally client information will be stored in 3 different places within the switch

1. WCM – Wireless Control Module
2. WCDB – Wireless Client DataBase within IOSd
3. Platform or Forwarding Infrastructure

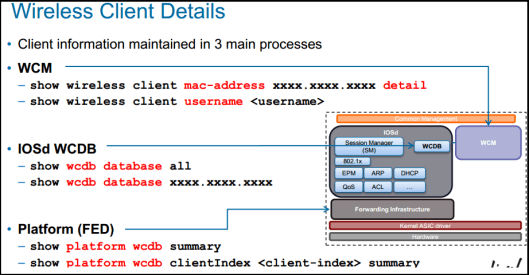

Below diagram shows these components within the switch architecture & commands you can run to view this information.

CA-Client Detail-01Here is an example. “show wireless client summary” output will provide each client MAC address, Connected AP name, WLAN ID, Client Status & Protocol. In this output if protocol appear as “Mobile” that mean that client is a roamed client.

3850-1#show wireless client ?
  ap                    Cisco access point information
  calls                 Wireless client calls
  client-statistics     Show clients statistics
  dot11                 Show 802.11 parameters
  location-calibration  wireless client location calibration
  mac-address           Wireless client MAC address
  probing               Show probing clients
  statistic             Show protocol client count
  summary               Show active clients
  tclas                 Show TCLAS associated with a client and User Priority
  timers                Display 802.11 system timers
  top                   top
  username              Shows wireless client information
  voice                 Wireless client voice parameters
  wifidirect            Show wifidirect related attributes

3850-1#show wireless client summary
Number of Local Clients : 2

MAC Address    AP Name        WLAN State              Protocol
----------------------------------------------------------------
8c70.5a74.2370 xxx-AP06        22   UP                 11n(5)
9018.7cfa.c6ac N/A             22   UP                 Mobile

You can find client IP information from “show wcdb database all” command. As you can see below mobility state shown as “LOCAL” for local client & “ANCHOR” for the mobile client indicating that client has roamed (or Point of Attachment – PoA moved) to another AP managed by a different 3850.

3850-1#show wcdb database all
        Total Number of Wireless Clients = 2
                Clients Waiting to Join   = 0
                Local Clients             = 1
                Anchor Clients            = 1
                Foreign Clients           = 0
                MTE Clients               = 0

Mac Address    VlanId IPv4 Address    Src If         Auth     Mob
------------------ ------ --------------- ------------------ -------- -------
8c70.5a74.2370   1420 x.x.104.29  0x0081670000000007 RUN      LOCAL
9018.7cfa.c6ac   1420 x.x.104.100 0x008094400000003E RUN      ANCHOR

“LOCAL” mean that client connects to an AP managed by this switch & that client remain on that AP without roaming. Here is mobility state “LOCAL” client detail information in WCDB. You can find client State_Change history from this output (ASSOCIATE -> L2_AUTH -> LEARN_IP->RUN)

3850-1#show wcdb database ?
  H.H.H             48-bit hardware address
  all               All WCDB entries
  client-id-db      All Client ID entries
  ip-db             All IP ADDR entries
  non-cisco-wgb-db  All Wired Clients behind Non-Cisco WGB

3850-1#show wcdb database 8c70.5a74.2370
mac:             8c70.5a74.2370
ssid:            Wireless2
client_type:     Regular Wireless
client_id:       0x00B9D50000000832
client_index:    1978
user_id:         xyz
src_interface:   0x00A0080000000028
dst_interface:   0x0000000000000000
bssid:           b838.6183.70a0
radio_id:        1
wgbid:           0000.0000.0000
wlan_id:         1
global_wlan_id:  22
assoc_id:        1
vlan_id:         1420
mcast_vlan_id:   1360
mobility_state:  LOCAL
auth_state:      RUN
auth_state_wcm:  RUN
dhcp_req_rx:     0
ipv4_source:     DHCP
ipsg_flag:       0
num_v4_addrs:    1
ipv4addr[0]:     x.x.104.29
ipv4addr[1]:     0.0.0.0
ipv4addr[2]:     0.0.0.0
ipv4addr[3]:     0.0.0.0
num_v6_addrs:    0
dhcp_server_ip:  0.0.0.0
dhcp_class_name: Test
dhcp_action_flags: 0
option 82:
option_82 length: 0
dhcp_notify_preference_flag: 1
dhcp_notify_interested_options: 0
options_length: 0
options TLV is:
p2p_state:        P2P_BLOCKING_DISABLE
bssid_iifid:     0x009C83C0000000A0
radio_iifid:     0x009D0C400000002A
num_protocol_values:  1
 Entry no: 0
 protocol = 0
 type = 0
 value = 0
ip_learnt:     0x1
flags:         0x2
switch_num:      0
asic_num:        0

state_change_history:
    Vlan Auth     Mob    Flags IPv4Src     IPv4Address(s)      time
 2. 1420 LEARN_IP LOCAL   0x2  DHCP    [1]  x.x.104.29     08-05-2014 18:35:43.329569
 1. 1420 L2_AUTH_ INIT    0x2  UNKNOWN [0]                 08-05-2014 18:35:42.465359
 0. 1363 ASSOCIAT INIT    0x0  UNKNOWN [0]                 08-05-2014 18:35:39.525280

    IPLearnt IPv6Address(s)
 2. 0x1      [0]
 1. 0x0      [0]
 0. 0x0      [0]

In the “show capwap detail” output you can find out “src_interface” is corresponds to Ca6 where xxx-AP08 is connected. “destination_interface”  0x000… 000 indicate it is destined to switch itsef.

3850-1#show capwap ?
  ap-name  CAPWAP Interface Info of an AP
  detail   CAPWAP Interface Details
  summary  CAPWAP Interface Summary

3850-1#show capwap detail

CAPWAP Tunnels General Statistics:
  Number of Capwap Data Tunnels       = 8
  Number of Capwap Mobility Tunnels   = 7
  Number of Capwap Multicast Tunnels  = 1


Name   APName          Type PhyPortIf Mode      McastIf
------ -------------------------------- ---- --------- --------- -------
Ca0    -               mob  -         unicast   -
Ca15   -               mcas -         unicast   -
Ca9    -               mob  -         unicast   -
.
Ca6    XXX-AP08        data Gi1/0/1   multicast Ca15
Ca4    XXX-AP02        data Gi2/0/2   multicast Ca15


Name   SrcIP           SrcPort DestIP    DstPort DtlsEn MTU   Xact
------ --------------- ------- --------------- ------- ------ ----- ----
Ca0    x.y.32.26    16667   x.y.49.1     16667   No     1464  1
Ca15   x.y.32.26    5247    239.160.32.265247    No     1449  1
Ca9    x.y.32.26    16667   x.y.32.25    16667   No     1464  1
.
Ca6    x.y.32.26    5247    x.y.32.133   4154    No     1449  0
Ca4    x.y.32.26    5247    x.y.33.66    65196   No     1449  0


Name   IfId               McastRef
------ ------------------ --------
Ca0    0x009D6B4000000001 0
Ca15   0x009417400000007D 8
Ca6    0x00A0080000000028 0
Ca4    0x009A4C000000001A 0

Now if you look at the WCDB client detail for the other client  you will see something below. “ANCHOR” means that client first associated to an AP managed by a this switch(3850-1) & then roam to an AP managed by different switch (3850-2). Now you can see in this switch client mobility status become “ANCHOR” & prior to that state client was in “LOCAL” mobility state.

3850-1#show wcdb database 9018.7cfa.c6ac ?
  |  Output modifiers
  <cr>

3850-1#show wcdb database 9018.7cfa.c6ac
mac:             9018.7cfa.c6ac
ssid:            Wireless2
client_type:     Regular Wireless
client_id:       0x00A1E6C0000007A9
client_index:    1841
user_id:         abc123
src_interface:   0x008094400000003E
dst_interface:   0x0000000000000000
bssid:           0000.0000.0000
radio_id:        0
wgbid:           0000.0000.0000
wlan_id:         1
global_wlan_id:  22
assoc_id:        5
vlan_id:         1420
mcast_vlan_id:   1360
mobility_stateANCHOR
auth_state:      RUN
auth_state_wcm:  RUN
dhcp_req_rx:     0
ipv4_source:     DHCP
ipsg_flag:       0
num_v4_addrs:    1
ipv4addr[0]:     x.x.104.100
ipv4addr[1]:     0.0.0.0
ipv4addr[2]:     0.0.0.0
ipv4addr[3]:     0.0.0.0
num_v6_addrs:    0
dhcp_server_ip:  0.0.0.0
dhcp_class_name: Test
dhcp_action_flags: 0
option 82:
option_82 length: 0
dhcp_notify_preference_flag: 1
dhcp_notify_interested_options: 0
options_length: 0
options TLV is:
p2p_state:        P2P_BLOCKING_DISABLE
bssid_iifid:     0x0000000000000000
radio_iifid:     0x0000000000000000
num_protocol_values:  1
 Entry no: 0
 protocol = 0
 type = 0
 value = 0
ip_learnt:     0x1
flags:         0x2
switch_num:      0
asic_num:        0

state_change_history:
    Vlan Auth     Mob    Flags IPv4Src    IPv4Address(s)      time
 3. 1420 RUN      LOCAL   0x2  DHCP    [1] x.x.104.100     08-05-2014 15:03:49.43096
 2. 1420 LEARN_IP LOCAL   0x2  DHCP    [1] x.x.104.100     08-05-2014 15:03:42.854828
 1. 1420 L2_AUTH_ INIT    0x2  UNKNOWN [0]                 08-05-2014 15:03:41.105011
 0. 1362 ASSOCIAT INIT    0x0  UNKNOWN [0]                 08-05-2014 15:03:38.187555

    IPLearnt IPv6Address(s)
 3. 0x1      [0]
 2. 0x1      [0]
 1. 0x0      [0]
 0. 0x0      [0]

In this situation you can see the traffic is sourcing( x.y.32.25) from different switch (3850-2).

3850-1#show capwap detail | in 003E
Ca9    0x008094400000003E 0

3850-1#show capwap detail | be Ca9
Name   SrcIP        SrcPort DestIP      DstPort DtlsEn MTU   Xact
------ --------------- ------- --------------- ------- ------ ----- ----
Ca0    x.y.32.26    16667   x.y.49.1     16667   No     1464  1
Ca7    x.y.32.26    5247    x.y.33.71    30387   No     1449  0
Ca9    x.y.32.26    16667   x.y.32.25    16667   No     1464  1

Now if you go to x.y.32.25 switch you should be able to see this client detail.

3850-2#show wcdb database all
        Total Number of Wireless Clients = 2
                Clients Waiting to Join   = 0
                Local Clients             = 1
                Anchor Clients            = 0
                Foreign Clients           = 1
                MTE Clients               = 0

Mac Address    VlanId IPv4 Address    Src If             Auth     Mob
-------------- ------ --------------- ------------------ -------- -------
9018.7cfa.c6ac   1420 x.x.104.100 0x008E6CC000000017 RUN      FOREIGN
0080.9244.fd09   1108 x.x.9.1     0x00A76C0000000010 RUN      LOCAL

You can verify client WCDB details as below

3850-2#show wcdb database 9018.7cfa.c6ac
mac:             9018.7cfa.c6ac
ssid:            Wireless2
client_type:     Regular Wireless
client_id:       0x00AB5540000004B0
client_index:    1131
user_id:         abc123
src_interface:   0x008E6CC000000017
dst_interface:   0x0083A74000000007
bssid:           b838.6183.6730
radio_id:        1
wgbid:           0000.0000.0000
wlan_id:         1
global_wlan_id:  22
assoc_id:        7
vlan_id:         1420
mcast_vlan_id:   1360
mobility_state:  FOREIGN
auth_state:      RUN
auth_state_wcm:  RUN
dhcp_req_rx:     0
ipv4_source:     DHCP
ipsg_flag:       0
num_v4_addrs:    1
ipv4addr[0]:     x.y.104.100
ipv4addr[1]:     0.0.0.0
ipv4addr[2]:     0.0.0.0
ipv4addr[3]:     0.0.0.0
num_v6_addrs:    0
dhcp_server_ip:  0.0.0.0
dhcp_class_name: Test
dhcp_action_flags: 0
option 82:
option_82 length: 0
dhcp_notify_preference_flag: 1
dhcp_notify_interested_options: 0
options_length: 0
options TLV is:
p2p_state:        P2P_BLOCKING_DISABLE
bssid_iifid:     0x0092BB8000000022
radio_iifid:     0x008FA4800000001F
num_protocol_values:  1
 Entry no: 0
 protocol = 0
 type = 0
 value = 0
ip_learnt:     0x1
flags:         0x2
switch_num:      0
asic_num:        0

state_change_history:
    Vlan Auth     Mob    Flags IPv4Src     IPv4Address(s)      time
 7. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 19:32:12.183349
 6. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 19:32:12.182996
 5. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 19:02:50.914053
 4. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 19:02:50.913653
 3. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 18:32:49.712737
 2. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 18:32:49.712373
 1. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 18:03:07.347859
 0. 1420 RUN      FOREIGN 0x2  DHCP    [1] x.y.104.100  08-05-2014 18:03:07.347511

    IPLearnt IPv6Address(s)
 7. 0x1      [0]
 6. 0x1      [0]
 5. 0x1      [0]
 4. 0x1      [0]
 3. 0x1      [0]
 2. 0x1      [0]
 1. 0x1      [0]
 0. 0x1      [0]

Now this time you can see the source interface is pointing to Ca10 where  xxx-AP02 is connected & destination interface pointing to Ca2 where mobility tunnel establish with anchor 3850 for this client.

3850-2#show capwap detail
CAPWAP Tunnels General Statistics:
  Number of Capwap Data Tunnels       = 6
  Number of Capwap Mobility Tunnels   = 7
  Number of Capwap Multicast Tunnels  = 1

Name   APName                           Type PhyPortIf Mode      McastIf
------ -------------------------------- ---- --------- --------- -------
Ca10   xxx-AP02                         data Gi1/0/3   multicast Ca1
Ca2    -                                mob  -         unicast   -
.

Name   SrcIP           SrcPort DestIP          DstPort DtlsEn MTU   Xact
------ --------------- ------- --------------- ------- ------ ----- ----
.
Ca10   x.y.32.25    5247    x.y.33.72    4115    No     1449  0
Ca2    x.y.32.25    16667   x.y.32.26    16667   No     1464  1

Name   IfId               McastRef
------ ------------------ --------
.
Ca10   0x008E6CC000000017 0
Ca2    0x0083A74000000007 0

As you saw in the above examples, it is important to understand those client Mobility States & Client Authentication Status when troubleshooting these cleint connectivity issues. Below diagram show where to look (WCM or WCDB) depend on the Client State (Assoc, L2_AUTH, LEARN_IP, L3_AUTH, RUN) in your troubleshooting process.

CA-Client Detail-02 Here are some important points about the above flow chart.

1. 802.11 association related information can be found only from AP debug messages (not from WLC)
2. Once 802.11 association complete WCM will add client entry onto WCDB
3. L2_AUTH (EAP or PSK) occur afterwards
4. Once L2_AUTH complete WCM send mobility messages to its peers to see that client information available with any of them
5. If no client info from any other WLC, it will go for LEARN_IP states (it can be via ARP, DHCP, etc)
6. If Web Auth configured then L3_AUTH state happen next
7. Once that complete client will move to RUN state once all QoS/Sec policy applied.
8. If 802.1X then AAA accounting start at that point.

Here is the reference Ciscolive365 presentation used for this post. You can watch the recorded session from the below link

BRKEWN-3021 – Advanced Troubleshooting Converged Access Wireless Deployments (2014 San Francisco)

Related Post

1.
2.
