Cisco enabled WGB support on their Catalyst APs (91xx series) from IOS-XE 17.8.1 version onward (refer release note to see all features added). It only supports the following 3 AP models in this software release.
- Cisco 9105
- Cisco 9115
- Cisco 9120
If you are familiar with 11ac Wave2 AP WGB configuration (refer to this post for more detail), you can get a feel for WGB configurations with 9100 series as well. Since this is the first code to support WGB functionality in 9100 series AP, certain restrictions listed below are applicable (per in IOS-XE 17.8.1 config guide).
- MAC filtering is not supported for wired clients.
- Idle timeout is not supported for both WGB and wired clients.
- Session timeout is not applicable for wired clients.
- Web authentication is not supported.
- WGB supports only up to 20 clients.
- If you want to use a chain of certificates, copy all the CA certificates to a file and install it under a trust point on the WGB, or else server certificate validation may fail.
- Wired clients connected to the WGB are not authenticated for security. Instead, the WGB is authenticated against the access point to which it associates. Therefore, we recommend that you physically secure the wired side of the WGB.
- Wired clients connected to a WGB inherit the WGB’s QoS and AAA override attributes.
- To enable the WGB to communicate with the root AP, create a WLAN and make sure that Aironet IE is enabled under the Advanced settings.

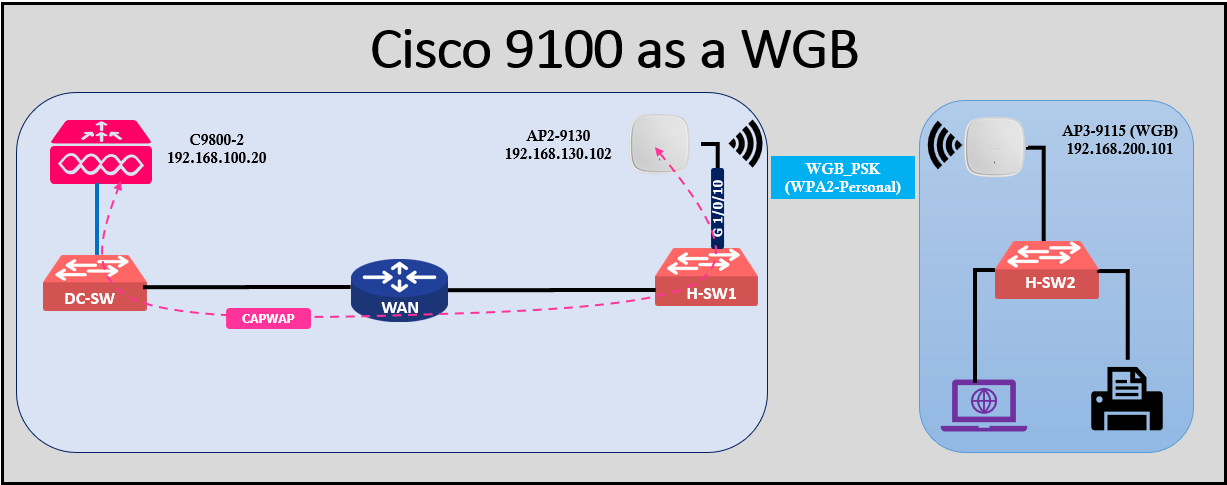

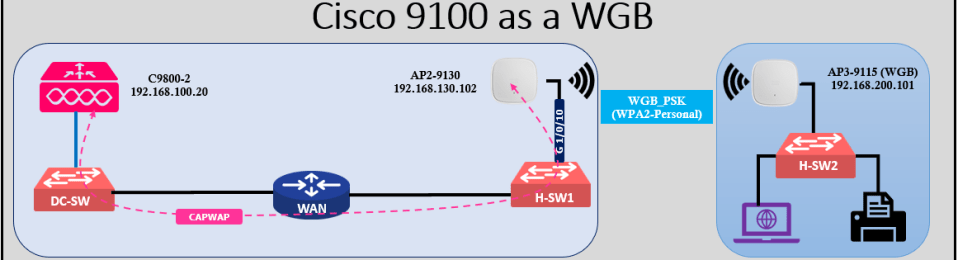

Here is my test topology for this post. (We will look at the basic config of WGB in this post & do a separate post on additional WGB configurations for wired devices)

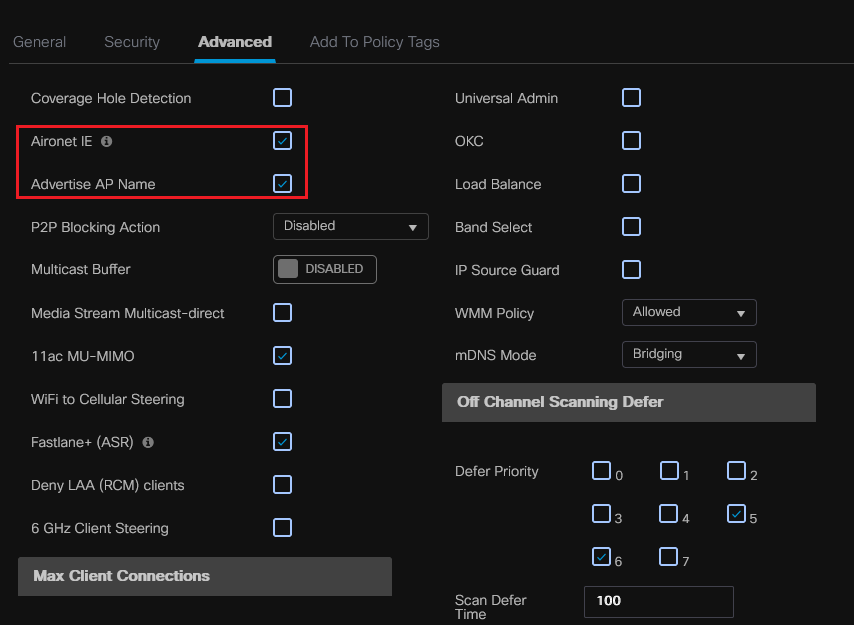

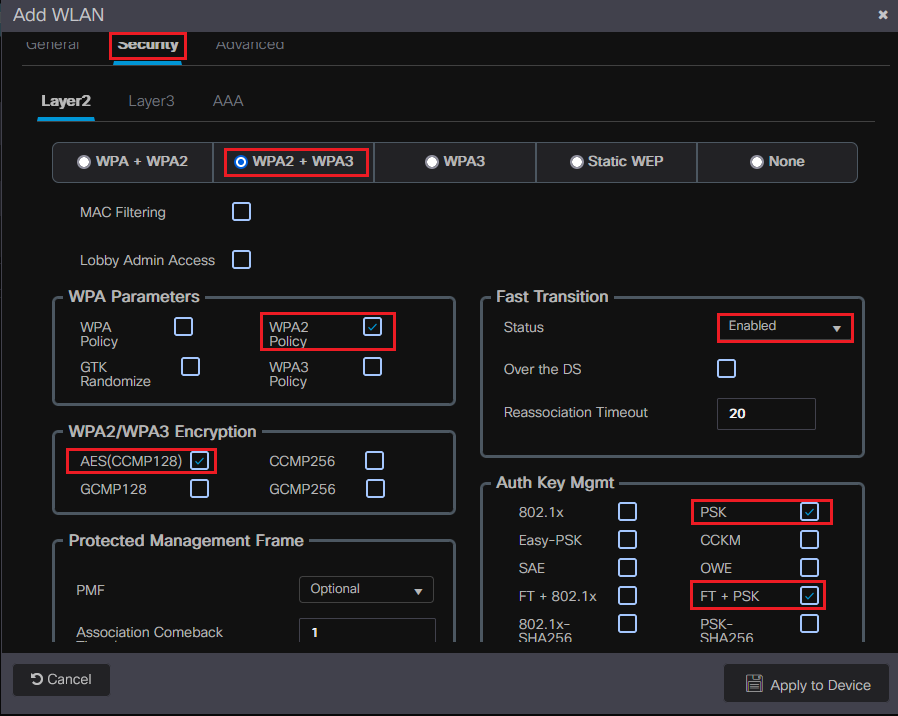

For WGB to work, you have to enable “Aironet-IE” under WLAN profile “Advanced” configurations in a 9800. (In AireOS, specific WLAN -> Advanced settings). My SSID is configured with PSK (AKM 2) & FT+PSK (AKM 4) as shown below.
Here is the 9115 firmware (I got it registered to 9800-CL with IOS-XE 17.8.1 like a normal AP first)
AP3-C9115#sh version AP3-C9115 uptime is 0 days, 4 hours, 52 minutes Last reload time : Sat Jul 9 07:05:22 UTC 2022 cisco C9115AXI-B ARMv8 Processor rev 0 (v8l) with 1971460/1186572K bytes of memory. Processor board ID 0 AP Running Image : 17.8.0.144 Primary Boot Image : 17.8.0.144 Backup Boot Image : 8.10.121.0 . . 1 Multigigabit Ethernet interfaces 2 802.11 Radios Radio Driver version : Broadcom BCA: 17.20 RC10.0 Radio FW version : 1570.15656.r44417 44417
You have to get 9105/9115/9120 AP registered to a C9800 that is running 17.8.1 or higher code in order to convert that AP as a WGB mode. Then you can use “ap-type workgroup-bridge” CLI command to convert it to WGB.
AP3-C9115#ap-type capwap Switch to CAPWAP AP type ewc-ap Switch to EWC AP type workgroup-bridge Switch to Workgroup Bridge(WGB) AP type AP3-C9115#ap-type workgroup-bridge WGB is a wireless client that serve as nonroot ap for wired clients. AP is the Master/CAPWAP AP, system will need a reboot when ap type is changed to WGB. Do you want to proceed? (y/N): y
Once AP in WGB mode you can do certain configurations using “configure x” in global exec mode. Below shows the SSID profile configuration on WGB (configuration options show to see what’s available in 17.8.1 version)
AP3-C9115#configure ap AP commands for IPv4/6 Configuration boot Set boot parameters clock Manage the system clock crypto Encryption module dot11Radio Dot11 radio interface dot1x IEEE 802.1X global configuration commands eap-profile EAP global configuration commands ntp Configure NTP qos Configure qos for wireless clients radius Configure radius server security security information ssh Configure secure shell operation ssid-profile Configure SSID profile information wgb Workgroup-bridge configuration AP3-C9115#configure ssid-profile WORD <Enter SSID profile name> AP3-C9115#configure ssid-profile WGB_PSK delete Delete the SSID profile ssid Configure radio service set parameters AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication authentication method dtim Configure DTIM period qos QOS profile configured to ssid AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication eap Dot1x method open open method psk Pre-shared key method AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk WORD Enter pre-shared Key AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk Vipassana123 key-management key management AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk Vipassana123 key-management dot11r 802.11r Fast BSS Transition dot11w 11w PMF Client Configuration wpa2 allow WPA Version 2 clients AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk Vipassana123 key-management wpa2
If you want to configure WGB to use FT (802.11r) with PSK you can use “dot11r” option in the configuration.
AP3-C9115#configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk Vipassana123 key-management dot11r
Here is how you can configure a radio role to “workgroup-bridge” and assign the SSID profile to it. Once do that you can enable the radio interface.
AP3-C9115#configure dot11 <0-1> Dot11Radio interface number AP3-C9115#configure dot11 1 antenna Configure dot11 radio antenna settings beacon-period Configure periodic beacon interval channel Configure root AP mode radio channel disable Disabile the selected radio interface enable Enable the selected radio interface encryption Configure dot11 encryption parameters mode Mode of the radio wlan Configure WLAN at root AP mode radio AP3-C9115#configure dot11 1 mode root-ap Root access point or bridge scan WGB passive scanning mode operation wgb Workgroup-bridge AP3-C9115#configure dot11 1 mode wgb ssid-profile SSID Profile to be mapped AP3-C9115#configure dot11 1 mode wgb ssid-profile WORD <Enter the configured ssid profile name> AP3-C9115#configure dot11 1 mode wgb ssid-profile WGB_PSK AP3-C9115#configure dot11 1 enable
Once you enable the radio 1 interface, you should be able to see the client is associating to 9800 configured WLAN and get IP address.
[*07/09/2022 22:26:44.6580] DOT11_CFG[1] Radio Mode is changed from Local to WGB Uplink [*07/09/2022 22:26:44.6580] DOT11_UPLINK_DRIVER[1]: WGB uplink mode started [*07/09/2022 22:26:44.9480] DOT11_UPLINK_DRIVER[1]: Disabled radar detection [*07/09/2022 22:26:44.9620] DOT11_UPLINK_DRIVER[1]: Disabled DFS CAC timer [*07/09/2022 22:26:45.0360] SSID-Profile WGB_PSK has been saved successfully [*07/09/2022 22:26:45.0360] [*07/09/2022 22:26:50.2370] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 PSK] [*07/09/2022 22:26:50.2450] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 PSK] [*07/09/2022 22:26:51.8890] chatter: DHCP-EVT: Sending DHCP discover packet length 346 bytes [*07/09/2022 22:26:55.8900] chatter: DHCP-EVT: Sending DHCP discover packet length 346 bytes [*07/09/2022 22:26:55.9130] chatter: DHCP-EVT: Received DHCP msg type: DHCP_OFFER from server: 192.168.200.1 [*07/09/2022 22:26:55.9130] chatter: DHCP-EVT: DHCP client machine state: init [*07/09/2022 22:26:55.9130] chatter: DHCP-EVT: Sending DHCP request packet length 346 bytes [*07/09/2022 22:26:55.9340] chatter: DHCP-EVT: Received DHCP msg type: DHCP_ACK from server: 192.168.200.1 [*07/09/2022 22:26:55.9340] chatter: DHCP-EVT: DHCP client machine state: requesting [*07/09/2022 22:26:59.2920] odhcp6c[8301]: in timer_init.
You can use “show wgb dot11 x ” CLI command to verify. You can see WGB associated with 11ax and got IP address 192.168.200.101. Note that current data rate shows 2401Mbps, which is the highest data rate you can get with a 4×4:4SS, 80MHz, 0.8us GI client. (You can search 2402 value in mcsindex.com to confirm)
AP3-C9115#show wgb bridge Bridge Forwarding/Filtering Database [verbose] dot11 IEEE 802.11 show information dot11v 802.11v info eap Shows EAP information forwarding WGB Forwarding mobile Current mobile station qos Show QOS information scan show passive scan details ssid show configured and connected SSID details statistic Packet statistics wifi WGB frameware wifi0 AP3-C9115#show wgb dot11 associations Uplink Radio ID : 1 Uplink Radio MAC : F8:0F:6F:15:27:2F SSID Name : WGB_PSK Parent AP Name : AP2-C9130 Parent AP MAC : 2C:57:41:52:B0:CF Uplink State : CONNECTED Auth Type : PSK Key management Type : WPA2 Dot11 type : 11ax Channel : 52 Bandwidth : 80 MHz Current Datarate : 2401 Mbps Max Datarate : 2401 Mbps RSSI : 33 IP : 192.168.200.101/24 Default Gateway : 192.168.200.1 DNS Server1 : 192.168.100.101 Domain : mrn.local IPV6 : ::/128 Assoc timeout : 5000 Msec Auth timeout : 5000 Msec Dhcp timeout : 60 Sec
From 9800 WLC end, you can verify RSSI/SNR for the 9115 WGB client. In my test environment, it is next to each other & hence got 71dB SNR (-28dBm RSSI). I will do another post when IOS-XE 17.9.x comes out by placing WGB at another end of my house.
C9800-2#show wireless client mac-address f80f.6f15.272f detail | in Current|Sup|Client|dB|AP|For Client MAC Address : f80f.6f15.272f Client MAC Type : Universally Administered Address Client DUID: NA Client IPv4 Address : 192.168.200.101 Client IPv6 Addresses : fe80::524a:8c93:c330:7d60 Client Username: N/A AP MAC Address : 2c57.4152.b0c0 AP Name: AP2-C9130 AP slot : 1 Client State : Associated Client type : Workgroup Bridge Wired Client count : 0 Connected For : 1806 seconds Client IIF-ID : 0xa0000003 WMM Support : Enabled U-APSD Support : Disabled Fastlane Support : Disabled Client Active State : Active Current Rate : m11 ss4 Supported Rates : 6.0,9.0,12.0,18.0,24.0,36.0,48.0,54.0 Client Join Time: Join Time Of Client : 07/10/2022 17:28:52 AEST Client State Servers : None Client ACLs : None Client Entry Create Time : 1803 seconds EAP Type : Not Applicable Client Capabilities Client Statistics: Number of Bytes Received from Client : 63776 Number of Bytes Sent to Client : 15466 Number of Packets Received from Client : 445 Number of Packets Sent to Client : 137 Radio Signal Strength Indicator : -28 dBm Signal to Noise Ratio : 71 dB Client Scan Report Time : Timer not running Client Scan Reports Nearby AP Statistics: Max Client Protocol Capability: Wi-Fi6 (802.11ax)
You can do other basic configurations like NTP, SSH, Mgt user, etc using the same “configure x ” CLI commands. Even though I enabled SSH, was not able to reach it (maybe something to do with my 9800 side config, not too sure )
AP3-C9115#configure ntp server 192.168.100.1 AP3-C9115#show ntp Stratum Version Last Received Delay Offset Jitter NTP server 3 4 12sec ago 0.198ms -0.048ms 0.000ms 192.168.100.1 AP3-C9115#sh clock *15:46:49 AEST Sun Jul 10 2022 AP3-C9115#configure ssh enable AP3-C9115#sh ip int brief Interface IP-Address Method Status Protocol Speed Duplex wired0 unassigned unset up up 1000 full auxiliary-client 192.168.200.101 DHCP up up n/a n/a apr0v0 n/a n/a administatively down down n/a n/a apr1v0 n/a n/a up up n/a n/a **** basic IP & Mgmt user *** AP3-C9115#configure ap address IPv4/6 address config hostname Configure AP hostname management Configure mgmt user credentials ! AP3-C9115#configure ap management add username rasika password <password> secret <enable_secret> ****
Depending on your SSID, and session timeout (by default 30min) you will notice WGB disassociate & reassociate. In a 9800 you can increase this value to 86400s (24hrs) maximum. There is no way to disable session timeout in that platform (not like AireOS). Here are the WGB console logs when that occurs.
AP3-C9115#[*07/10/2022 15:56:30.0867] Received disassociate (uplink)[F8:0F:6F:15:27:2F], (bssid)[2C:57:41:52:B0:CF] (252) unknown [*07/10/2022 15:56:30.1347] Received deauthenticate (uplink)[F8:0F:6F:15:27:2F], (bssid)[2C:57:41:52:B0:CF] (252) unknown [*07/10/2022 15:56:30.2997] wl: Not Ready [*07/10/2022 15:56:30.3007] (Dot11UplinkBcm) (vendor_set_80211_systemcmd:1093) System cmd wl -i apr1v0 scan -c 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165 -s WGB_PSK returned with status: 54016 [*07/10/2022 15:56:35.1607] wl: Scan Rejected [*07/10/2022 15:56:35.1617] (Dot11UplinkBcm) (vendor_set_80211_systemcmd:1093) System cmd wl -i apr1v0 scan -c 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165 -s WGB_PSK returned with status: 54016 [*07/10/2022 15:56:40.1687] wl: Scan Rejected [*07/10/2022 15:56:40.1687] (Dot11UplinkBcm) (vendor_set_80211_systemcmd:1093) System cmd wl -i apr1v0 scan -c 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165 -s WGB_PSK returned with status: 54016 [*07/10/2022 15:56:49.4918] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 PSK] [*07/10/2022 15:56:49.4998] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 PSK]
If you configure WGB to use 11r, you will see WGB associated with “FT-PSK” when connecting.
[*07/10/2022 21:19:26.5085] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 FT-PSK] [*07/10/2022 21:19:26.5165] DOT11-UPLINK_ESTABLISHED: Interface Dot11Radio1, Associated To AP AP2-C9130 2C:57:41:52:B0:CF [WPA2 FT-PSK] [*07/10/2022 21:19:28.3506] chatter: DHCP-EVT: Sending DHCP discover packet length 346 bytes [*07/10/2022 21:19:28.4796] chatter: DHCP-EVT: Received DHCP msg type: DHCP_OFFER from server: 192.168.200.1 [*07/10/2022 21:19:28.4796] chatter: DHCP-EVT: DHCP client machine state: init [*07/10/2022 21:19:28.4796] chatter: DHCP-EVT: Sending DHCP request packet length 346 bytes [*07/10/2022 21:19:28.5016] chatter: DHCP-EVT: Received DHCP msg type: DHCP_ACK from server: 192.168.200.1 [*07/10/2022 21:19:28.5016] chatter: DHCP-EVT: DHCP client machine state: requesting [*07/10/2022 21:19:33.5216] route: SIOCADDRT: File exists [*07/10/2022 21:19:33.5606] odhcp6c[30877]: in timer_init.
With this release, Cisco has introduced a way you can simply upload WGB configuration to another AP. First, you can upload your working WGB configuration to a SFTP/TFTP server. Then you can download it to another AP. You can use “copy configuration upload {SFTP|TFTP}: <server_ip_addr> <dir> <filename>” CLI command to upload. By default configuration filename looks like “wgb_running_config.AP3-C9115”. I used my Cisco Prime as TFTP server and then from there I copy it across to my FTP Server in the lab (bit of additional steps to me).
AP3-C9115#copy configuration upload tftp: 192.168.100.13 Starting upload of WGB config tftp://192.168.100.13 ... It may take a few seconds. If longer, please cancel command, check network and try again. ######################################################################## 100.0% Config upload completed. --- steps to on Cisco Prime --- cpi/admin# shell Enter shell access password : Starting bash shell ... ! ade # cd /localdisk/tftp/ ade # cp wgb_running_config.AP3-C9115 /localdisk/defaultRepo/ ! ade # exit cpi/admin# copy disk:defaultRepo/wgb_running_config.AP3-C9115 ftp://192.168.99.100/ Username: ftpuser Password:
Once uploaded you can have a look at your configuration file. Here is my WGB configuration. As you can see there are some default config lines too. Highlighted the lines I manually configured.
configure ap management add username rasika password $1$$aOSB4e1x4s0F7HGAARc5e0 secret $1$$aOSB4e1x4s0F7HGAARc5e0 configure ntp server 192.168.100.1 configure clock timezone AEST-10:0 configure ssid-profile WGB_PSK ssid WGB_PSK authentication psk U2FsdGVkX19dKErYKCCysjYrpLGUF2dhaCIFK61k7TI= key-management dot11r configure ssid-profile WGB_PSK ssid WGB_PSK qos profile configure wgb broadcast tagging disable configure wgb packet retries 64 drop configure ssh enable configure dot11Radio 0 mode wgb ssid-profile WGB_PSK configure dot11Radio 0 enable configure dot11Radio 1 encryption mode ciphers aes-ccm configure dot11Radio 1 mode wgb ssid-profile WGB_PSK configure dot11Radio 1 enable configure ap address ipv6 disable
Now you can download this configuration to another WGB with zero config. You can use “copy configuration download {SFTP|TFTP}: <server_ip_addr> <dir> <filename>”. I do not have another 9115 to try it out, I am sure you get the idea.
There are advanced configuration commands available for WGB. If you need to learn all the configuration options/commands, I would highly recommend going through 9800 IOS-XE 17.8.x configuration guide. Then test it out prior to deployment in production.
